Manwal tal-Utent tat-Tindif mingħajr Fili Beldray BEL0908 Clean & Dry

1. Introduzzjoni

Grazzi tax-xiriasing the Beldray BEL0908 Clean & Dry Cordless Cleaner. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before first use and retain it for future reference.

The Beldray Clean & Dry Cordless Cleaner is designed to effectively wash, clean, and dry hard floors, leaving them spotless. Its cordless design and dual tank system offer convenient and efficient cleaning.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Dejjem segwi l-prekawzjonijiet bażiċi ta' sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta' nar, xokk elettriku, u korriment personali.

• Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
• Tgħaddix l-apparat fl-ilma jew f'xi likwidu ieħor.
• Dan l-apparat huwa għal użu domestiku biss.
• Żomm l-apparat fejn ma jintlaħaqx mit-tfal.
• Tiżgura l-voltage indicated on the rating label corresponds with your mains supply voltage.
• Tużax l-apparat jekk xi parti tkun bil-ħsara.
• Unplug the appliance from the mains supply before cleaning or maintenance.
• Uża biss aċċessorji rakkomandati mill-manifattur.
• This appliance is designed for wet cleaning of hard floors. Do not use on carpets or rugs.
• Żvojta t-tank tal-ilma maħmuġ regolarment biex tevita l-overflow.
• Do not use flammable or combustible liquids with this appliance.

3. Komponenti tal-Prodott

Familiarize yourself with the parts of your Beldray Clean & Dry Cordless Cleaner:

•

  Unità Prinċipali: The primary body of the cleaner, housing the motor and battery.
•

  Tank tal-Ilma Nadif (550ml): Located at the top, this tank holds fresh water and cleaning solution for washing floors.

•

  Dirty Water Tank (280ml): Located at the bottom, this tank collects dirty water and debris vacuumed from the floor.

•

  Dual-Purpose Brush Bar: Cleans and dries simultaneously. This removable component is essential for effective cleaning.
•

  Trej tal-Ħażna: Provides a convenient place to store the cleaner and charge it.

•

  Ċarġer: For recharging the 22.2V lithium-ion battery.

4. Twaqqif u Użu Inizjali

4.1 Iċċarġjar tal-batterija

Before first use, fully charge the appliance. The 22.2V lithium-ion battery provides up to 30 minutes of operating time on a full charge, which typically takes 3-4 hours.

1. Place the cleaner on its storage tray.
2. Qabbad il-ċarġer mal-port tal-iċċarġjar fuq l-apparat tat-tindif.
3. Ipplaggja l-ċarġer f'ħanut tal-mejn adattat.
4. The charging indicator light will illuminate during charging and change when fully charged.

4.2 Imla t-Tank tal-Ilma Nadif

1. Neħħi t-tank tal-ilma nadif mill-unità prinċipali.
2. Iftaħ it-tapp tat-tank.
3. Fill the tank with clean water. You may add a small amount of suitable hard floor cleaning solution, following the solution manufacturer's instructions. Do not overfill.
4. Close the tank cap securely and reinsert the tank into the main unit.

5. Istruzzjonijiet Operattivi

5.1 Tindif ta' Pavimenti Iebsa

The Beldray Clean & Dry Cordless Cleaner is suitable for sealed wood and hard floors, including tile, vinyl, and laminate.

•

  Image description: The Beldray cleaner shown on different hard floor surfaces like sealed wood, tile, vinyl, and laminate, indicating its versatility.

1. Kun żgur li t-tank tal-ilma nadif ikun mimli u t-tank tal-ilma maħmuġ ikun vojt.
2. Agħfas il-buttuna tal-qawwa biex tixgħel il-cleaner.
3. Select the desired speed setting (2 speeds available). Use the boost function for stubborn dirt.
4. Begin cleaning by moving the cleaner across the floor. The dual-purpose brush bar will wash and clean, while the vacuum system simultaneously sucks up dirty water, leaving the floor clean and dry.
5. The swivel floor head allows for easy maneuverability around corners and under furniture.
6.

   Image description: The cleaner's swivel head demonstrating its ability to navigate around obstacles and reach tight spaces.

7. Monitor the dirty water tank. If the max fill line is exceeded, empty it immediately to prevent leaks.

5.2 Handling Spills

The cleaner can also be used to quickly clean up liquid spills on hard floors.

•

  Image description: The cleaner effectively vacuuming a liquid spill from a hard floor, demonstrating its spill clean-up capability.

1. Position the cleaner over the spill.
2. Turn on the cleaner and move it slowly over the liquid to vacuum it up.
3. Empty the dirty water tank immediately after cleaning up spills.

6. Manutenzjoni u Tindif

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-apparat tiegħek.

6.1 Tbattil u Tindif tat-Tank tal-Ilma Maħmuġ

The dirty water tank should be emptied after each use or when it reaches the maximum fill line.

•

  Image description: A hand removing the dirty water tank from the cleaner, showing the ease of access for emptying.

1. Itfi u aqla 'l-apparat li jnaddaf.
2. Neħħi t-tank tal-ilma maħmuġ mill-unità prinċipali.
3. Pour out the dirty water and debris into a sink.
4. Laħlaħ it-tank sewwa b'ilma nadif.
5. Allow the tank to air dry before reattaching it to the cleaner.

6.2 Cleaning the Dual-Purpose Brush Bar

The brush bar should be cleaned regularly to maintain cleaning efficiency.

•

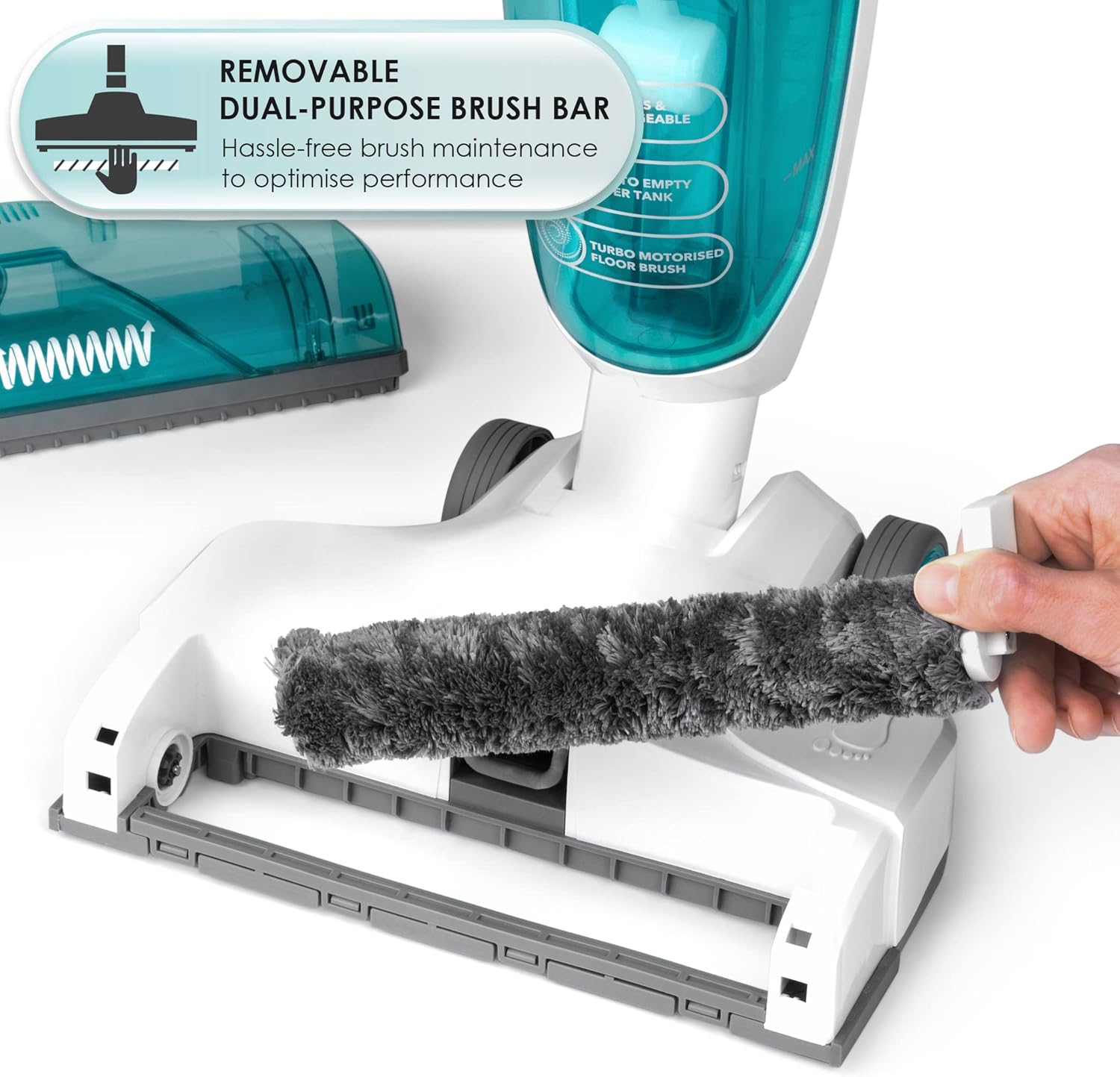

  Image description: A hand removing the dual-purpose brush bar from the cleaner, highlighting its removable design for easy maintenance.

1. Itfi u aqla 'l-apparat li jnaddaf.
2. Remove the brush bar cover and then the brush bar.
3. Rinse the brush bar under running water to remove any hair or debris.
4. Ensure the brush bar is completely dry before reinserting it.
5. Reattach the brush bar and its cover securely.

6.3 Tindif Ġenerali

• Imsaħ il-barra tat-tindif b'ċarruta ratba u damp drapp.
• Tużax tindif jew solventi li joborxu.
• Store the cleaner in a dry place, preferably on its storage tray.

7 Issolvi l-problemi

If you encounter issues with your Beldray Clean & Dry Cordless Cleaner, refer to the table below for common problems and solutions.

8. Speċifikazzjonijiet

• Mudell: BEL0908
• Ditta: Beldray
• Voltage: 22.2V
• Tip ta 'batterija: Lithium-ion
• Ħin tat-Tħaddim: Sa 30 minuta
• Ħin tal-Iċċarġjar: 3-4 sigħat
• Kapaċità tat-Tank tal-Ilma Nadif: 550 ml
• Kapaċità tat-Tank tal-Ilma Maħmuġ: 280 ml
• Livell ta' Storbju: 72 dB
• Dimensjonijiet tal-Prodott: 10.63 x 10.24 x 44.88 ċm
• Piż tal-oġġett: 5.72 kg
• Karatteristiċi Speċjali: Removable Dual Tank System, Removable Dual-Purpose Brush Bar, Swivel Floor Head, Dual Speed with Boost Function, Cordless & Rechargeable.

9. Garanzija u Appoġġ

For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Beldray websit: www.beldray.com.

You can also contact customer service via the details provided on the product packaging.

10. Dimostrazzjoni tal-Vidjo tal-Prodott

Watch the official product video for a visual guide on the features and operation of the Beldray Clean & Dry Cordless Cleaner.
