Introduzzjoni
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Sauter ELEGANT 3650 Combined Hob and Oven. Please read this manual thoroughly before using the appliance and keep it for future reference.

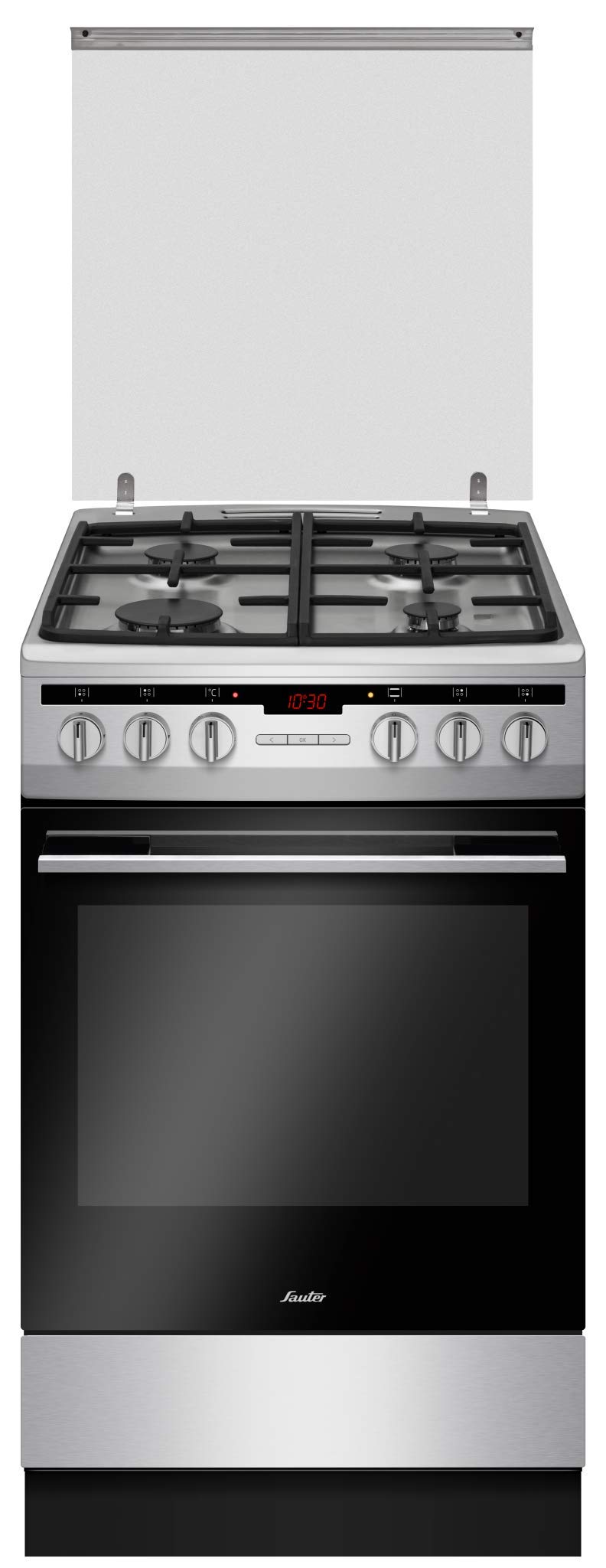

Immaġni: Quddiem view of the Sauter ELEGANT 3650 Combined Hob and Oven. This appliance features a hob with four gas burners on top and an oven below, with control knobs on the front panel.
Istruzzjonijiet tas-Sigurtà
Always prioritize safety when operating this appliance. Failure to follow these instructions may result in injury or damage.
- Sigurtà tal-Gass: The appliance is equipped with enhanced safety sensors on all burners. These sensors automatically stop the flow of gas if the flame extinguishes, preventing gas leakage. Ensure proper ventilation when using gas burners.
- Sigurtà Elettrika: This oven is designed for EU 220 Volt electric outlets. Ensure the appliance is correctly earthed and connected to a suitable power supply.
- Uċuħ sħan: The oven and hob surfaces become hot during operation. Use oven mitts and avoid direct contact with hot surfaces. Keep children away from the appliance.
- Installazzjoni: Installation should be performed by a qualified technician in accordance with local regulations and standards.
- Tindif: Disconnect the appliance from the power supply before cleaning. Allow hot surfaces to cool down completely.
Setup u Installazzjoni
The Sauter ELEGANT 3650 requires professional installation for both electrical and gas connections.
Dimensjonijiet
- Għoli: 85 ċm
- Wisa': 50 ċm
- Fond: 60 ċm
Ħtiġiet Elettriku
This appliance is rated for an 'A' energy efficiency and requires a 220 Volt electric outlet, suitable for EU standards. Ensure the electrical circuit can support the appliance's power consumption.
Konnessjoni tal-Gass
The hob features 4 Italian-made Defendi gas burners. The appliance is designed to operate with natural gas. A qualified technician must connect the appliance to the gas supply and check for leaks.
Istruzzjonijiet Operattivi
Using the Gas Hob
- Place a suitable cooking vessel on the desired burner.
- Push and turn the corresponding control knob to the ignition position. The gas buttons are ignited electronically.
- Hold the knob for a few seconds to allow the safety sensor to activate. Release the knob once the flame is stable.
- Adjust the flame intensity by turning the knob between the minimum and maximum settings.
- To turn off, turn the knob to the 'off' position.
Uża l-Forn Elettriku
The oven has a spacious 65.5+ liter capacity and a temperature range of 50-250°C.
- Select the desired cooking mode using the function selector knob.
- Issettja t-temperatura mixtieqa billi tuża l-pum tal-kontroll tat-temperatura.
- For fast pre-heating, the oven can reach 150°C in approximately 4 minutes.
- Use the digital timer on the operating panel to set cooking duration or to program delayed start/stop.
- Place food inside the oven using the provided deep baking trays or cast iron roasting rack. Optional removable telescopic runners are available.
Oven Cooking Modes:
- Passive turbo
- Twaqqif
- Upper and lower heater
- Eko grill
- Power grill
- Grill + turbo
- Lower + grill
- Saħħan minn qabel malajr
- Lower heater
- Lower + turbo
- Dawl
The specialized ProCook baking trays with honeycomb technology are designed to prevent sticking and ensure even cooking results.
Manutenzjoni u Tindif
Regular cleaning and maintenance will ensure the longevity and optimal performance of your appliance. Always ensure the appliance is cool and disconnected from the power supply before cleaning.
- Intern tal-forn: The oven features an easy-to-clean gray enameled interior. Use a soft cloth and mild detergent. Avoid abrasive cleaners that can damage the enamel.
- Bieb tal-Forn: The smooth glass surface of the interior oven door is removable for easy cleaning. Consult the full product manual for instructions on how to detach and reattach the door.
- Hob Surface: Clean the hob surface and burner caps regularly with a non-abrasive cleaner. Ensure all parts are dry before reassembling and using the hob.
- Aċċessorji: Wash baking trays, roasting racks, and runners with warm soapy water.
Issolvi l-problemi
If you encounter issues with your appliance, refer to the following common solutions. For more complex problems, contact a qualified service technician.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-burner ma jaqbadx | No gas supply, igniter dirty, or safety sensor not engaged. | Check gas supply. Clean igniter. Hold knob longer after ignition. |
| Forn ma jsaħħanx | Power supply issue, incorrect mode/temperature setting, or timer not set. | Check power connection. Verify mode and temperature. Ensure timer is set correctly or off. |
| Tisjir irregolari fil-forn | Incorrect rack position, overloaded oven, or door not sealed properly. | Use recommended rack positions. Avoid overcrowding. Check door seal for damage. |
Speċifikazzjonijiet
- Mudell: Sauter ELEGANT 3650
- Dimensjonijiet (H x W x D): 85 ċm x 50 ċm x 60 ċm
- Kapaċità tal-forn: 65.5+ liters
- Klassifikazzjoni tal-Enerġija: 'A'
- Tip ta' Fjuwil: Electric (oven), Natural Gas (hob)
- Burners tal-Hob: 4 Italian-made Defendi gas burners
- Oven Temperature Range: 50-250°C
- Rekwiżit Elettriku: EU 220 Volt
- Karatteristiċi Speċjali: Electronic ignition, safety sensors, digital timer, ProCook baking trays, removable glass interior door.
Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your local Sauter authorized service center. Keep your proof of purchase for warranty claims.
For technical assistance or spare parts, please contact Sauter customer service.
