Reloop Groove Blaster BT Portable Bluetooth Speaker

1. Introduzzjoni

The Reloop Groove Blaster BT is a portable 100W loudspeaker designed for high sound pressure levels and robust bass performance. It features a built-in Bluetooth 4.0 interface for wireless audio streaming up to 30 meters and an integrated, rechargeable Li-ion battery providing up to 10 hours of music playback. NFC connectivity simplifies pairing with supported devices. The speaker's 3-way frequency separation, with two 3-inch midrange drivers, one 1-inch tweeter, and a 6-inch low-frequency driver, ensures a balanced and wide stereo sound.

Figure 1.1: Reloop Groove Blaster BT in use, highlighting its 10-hour battery life.

2. Kontenut tal-Pakkett

Kun żgur li l-oġġetti kollha huma preżenti fil-pakkett:

• Groove Blaster BT Portable Bluetooth Speaker
• Detachable Carrying Handle
• Power Supply Unit (located in the adapter compartment)

3. Kontrolli u Konnessjonijiet

3.1 Il-Panel tal-Kontroll ta' Fuq

The top panel provides access to all primary playback and pairing functions.

Figura 3.1: Dettaljat view of the top control panel.

• Buttuna tal-Enerġija (ⓘ): Agħfas u żomm biex tixgħel jew titfi l-ispiker.
• Play/Pause (▶/‖‖): Jikkontrolla l-plejbek tal-midja.
• Trakka Preċedenti (⏮): Jaqbeż għall-bidu tat-trakka kurrenti jew tat-trakka ta' qabel.
• It-Trakka li Jmiss (⏭): Jaqbeż għall-korsa li jmiss.
• Volum 'l isfel (-): Decreases the speaker volume.
• Volum 'il fuq (+): Increases the speaker volume.
• Bluetooth Pairing Button (ⓘ): Jibda l-modalità ta' tqabbil Bluetooth.
• NFC Area (N): Touch NFC-enabled devices here for quick pairing.
• Speaker Pairing Button (Speaker Pairing): Activates Smart Link function to connect two Groove Blaster BT speakers.

3.2 Konnessjonijiet ta' wara

The rear panel houses the power input, USB charging port, and auxiliary input, protected by an adapter compartment.

Figure 3.2: Rear connection panel with adapter compartment open.

• DC IN: Power input for the included power supply unit.
• Battery Level LEDs: Indicate the current battery charge status.
• USB POWER OUT (5V DC 1A): Port USB għall-iċċarġjar ta' apparati esterni.
• AUX IN: 3.5mm auxiliary input for wired audio connections.
• Power Supply Holder: Compartment to store the power supply unit.

4. Setup

4.1 Iċċarġjar tal-batterija

Before first use, fully charge the integrated Li-ion battery. Connect the included power supply unit to the DC IN port on the rear of the speaker and plug it into a wall outlet. The battery level LEDs will indicate charging status. A full charge provides up to 10 hours of playback, depending on usage and volume.

4.2 Tixgħel/Jitfi

Press and hold the Power button (ⓘ) on the top control panel for approximately 2 seconds to turn the speaker on or off. An audible cue will confirm the action.

5. Istruzzjonijiet Operattivi

5.1 Tqabbil tal-Bluetooth

1. Ensure the Groove Blaster BT is powered on.
2. Press the Bluetooth Pairing button (ⓘ) on the top panel. The Bluetooth indicator LED will flash, indicating pairing mode.
3. On your audio device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
4. Select "Groove Blaster BT" from the list of devices.
5. Once connected, the Bluetooth indicator LED will glow solid, and an audible confirmation will sound.

The speaker has a Bluetooth range of up to 30 meters.

5.2 Tqabbil NFC

For NFC-enabled devices, pairing is simplified:

1. Ensure NFC is enabled on your audio device.
2. Gently tap your NFC-enabled device against the NFC area (N) on the top control panel of the Groove Blaster BT.
3. Follow any on-screen prompts on your device to confirm the connection.

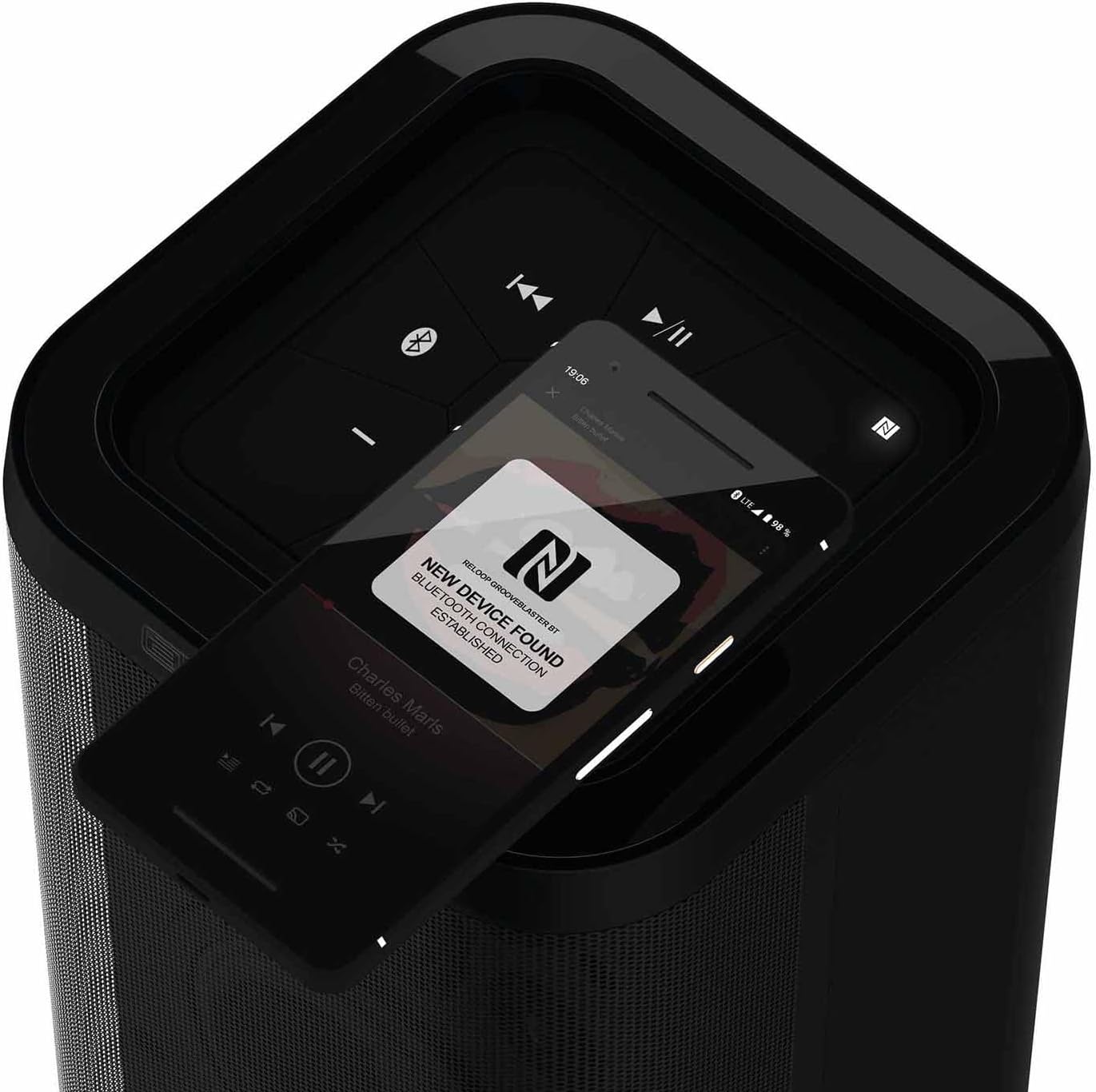

Figure 5.1: NFC pairing in progress.

5.3 Smart Link (Speaker Pairing)

The Smart Link function allows you to wirelessly connect two Groove Blaster BT speakers for a stereo experience or to double the overall volume across multiple rooms.

1. Ensure both Groove Blaster BT speakers are powered on and not connected to any Bluetooth device.
2. On the first speaker, press the "Speaker Pairing" button. The LED will flash.
3. Repeat the process on the second speaker.
4. The speakers will automatically search and connect to each other. Once connected, an audible confirmation will sound, and the LEDs will glow solid.
5. Now, connect your audio device to one of the paired speakers via Bluetooth (as described in Section 5.1). Audio will play through both speakers.

Figure 5.2: Two Groove Blaster BT speakers connected using Smart Link.

5.4 Kontrolli tal-Daqq

Use the buttons on the top control panel to manage your audio playback:

• Agħfas Play/Pause (▶/‖‖) to start or pause music.
• Agħfas Trakka Preċedenti (⏮) biex tmur għall-kanzunetta preċedenti.
• Agħfas Next Track (⏭) biex taqbeż għall-kanzunetta li jmiss.
• Agħfas Volum 'l isfel (-) or Volum 'il fuq (+) to adjust the audio level.

5.5 Funzjoni tal-Iċċarġjar tal-USB

The USB POWER OUT port (5V DC 1A) on the rear of the speaker can be used to charge external devices such as smartphones or tablets. Connect your device's USB charging cable to this port.

6. Manutenzjoni

6.1 Tindif

Imsaħ il-barra tal-ispiker b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif li joborxu, xama', jew solventi. Kun żgur li l-ebda likwidu ma jidħol fil-fetħiet tal-ispiker.

6.2 Kura tal-Batterija

To prolong battery life, avoid fully discharging the speaker frequently. If storing the speaker for an extended period, charge it to approximately 50% every few months.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

The Reloop Groove Blaster BT comes with a Garanzija limitata ta 'sena. For warranty claims or technical support, please contact your retailer or visit the official Reloop websit għal informazzjoni ta' kuntatt.
