1. Prodott Aktarview
The Retekess TD006 is a 4-key waterproof call button designed for use in service environments such as restaurants, cafes, bars, banks, and factories. It functions as a table transmitter, allowing customers to easily request service. This device is compatible with Retekess T114 and T128 watch receivers (sold separately).

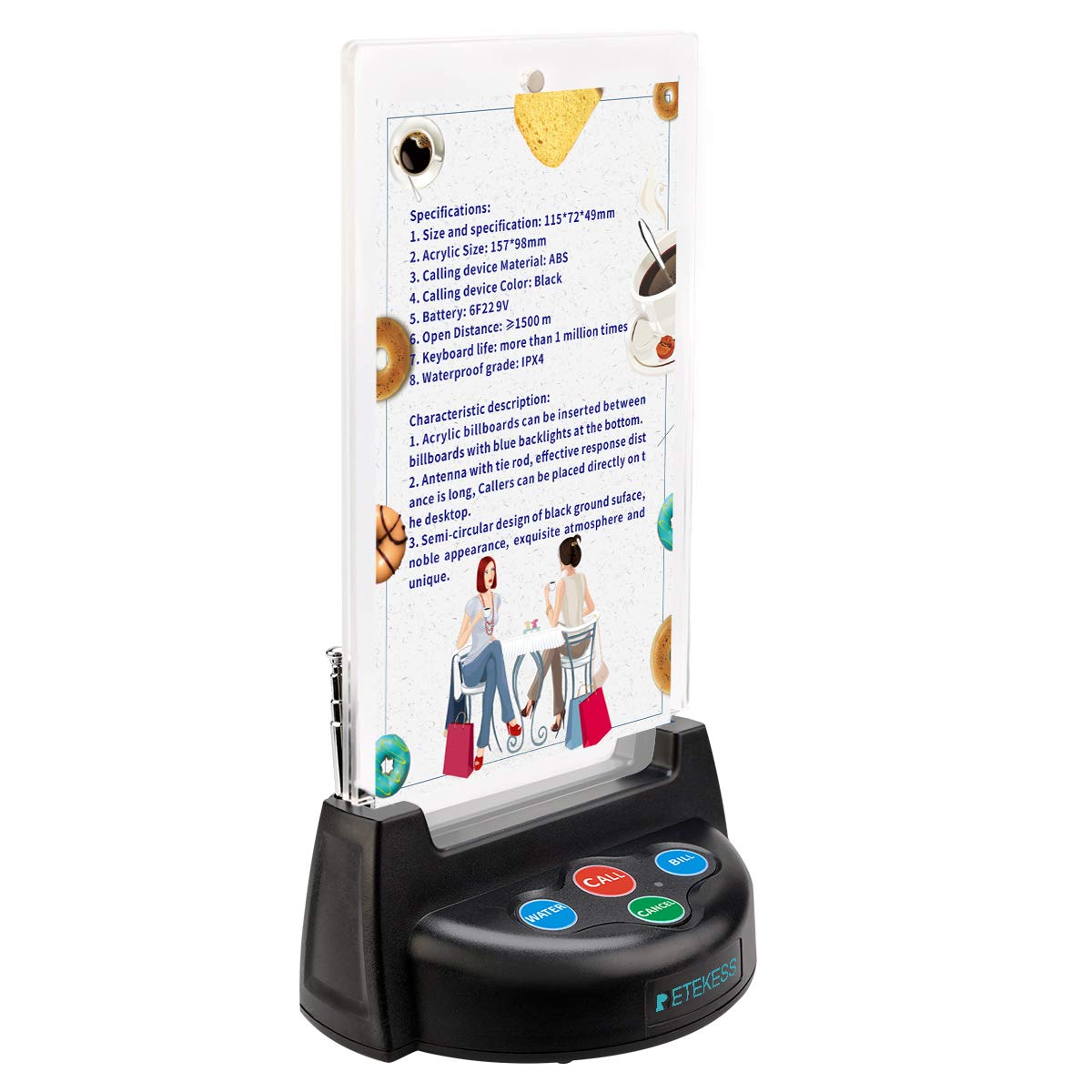

Figura 1: Quddiem view of the Retekess TD006 Pager System with its antenna extended.
2. Karatteristiċi ewlenin
- 4-Key Functionality: Features 'Call', 'Cancel', 'Water', and 'Bill' buttons for comprehensive service requests.
- Wiri Personalizzabbli: Includes two transparent plastic plates with magnets, allowing users to freely change the internal card paper for menus or advertisements.
- Ħajja twila tal-batterija: Equipped with a built-in 12V/23A battery, providing over 20,000 launches for extended standby time and reduced battery replacement frequency.
- Medda Estiża: An external antenna enables a transmission range of up to 300 meters (open space) and strong wall penetration, capable of transmitting through 10-15 walls in typical environments.
- Kompatibbiltà tar-riċevitur: Designed to work exclusively with Retekess T114 screen receivers and T128 watch receivers. A single button can activate one or multiple T128 watch receivers simultaneously.
- Disinn li ma jgħaddix ilma minnu: The call button features a waterproof construction, protecting it from spills and splashes.
3. Istruzzjonijiet ta' Setup
3.1 Installazzjoni tal-batterija
The TD006 pager system comes with a pre-installed 12V/23A battery. No initial battery installation is typically required. For battery replacement, refer to the maintenance section.
3.2 Customizing the Display Card
The pager features a transparent acrylic holder for displaying custom cards. To insert or change a card:
- Gently separate the two transparent plastic plates at the top. They are held together by magnets.
- Insert your desired menu, advertisement, or instruction card between the two plates.
- Ensure the card is properly aligned and the plates are securely re-attached by the magnets.
Figure 2: Illustration of inserting a custom card into the pager's magnetic acrylic display.
3.3 Pairing with Receivers (T114/T128)
The TD006 call button must be paired with a compatible Retekess T114 screen receiver or T128 watch receiver to function. Refer to the instruction manual of your specific receiver model for detailed pairing procedures. Generally, the process involves putting the receiver into pairing mode and then pressing the desired button on the TD006 transmitter.
Figure 3: The TD006 pager is compatible with T128 watch pagers and T114 screen receivers. Receivers are not included.
4. Istruzzjonijiet Operattivi
Once the TD006 call button is set up and paired with a receiver, operation is straightforward:
- Call Button (Red): Press this button to request general service. The paired receiver(s) will display the table number and alert the staff.
- Water Button (Blue): Press this button to specifically request water service.
- Bill Button (Blue): Press this button to request the bill.
- Cancel Button (Green): Press this button to cancel a previous service request.
Figure 4: A user pressing one of the service request buttons on the TD006 pager.
Video 1: This video demonstrates how to use call buttons in various service scenarios, providing a visual guide to the pager system's operation.
5. Manutenzjoni
5.1 Tindif
The TD006 call button is waterproof. To clean, wipe the surface with a damp drapp. Evita li tuża kimiċi ħarxa jew prodotti tat-tindif li joborxu li jistgħu jagħmlu ħsara lill-apparat.
5.2 Sostituzzjoni tal-batterija
The TD006 uses a 12V/23A battery. When the transmission range decreases or the indicator light fails to illuminate upon button press, it may be time to replace the battery. To replace:
- Locate the battery compartment, typically on the underside or rear of the device.
- Open the compartment using a small screwdriver if necessary.
- Remove the old 12V/23A battery.
- Insert a new 12V/23A battery, ensuring correct polarity.
- Agħlaq il-kompartiment tal-batterija sew.
Figure 5: The 12V/23A battery provides approximately 12 months of operation under normal use.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Pager button does not transmit signal. | Batterija baxxa jew mejta. | Replace the 12V/23A battery. |
| Receiver does not respond to button press. | Pager not paired with receiver. | Refer to receiver manual for pairing instructions. |
| Signal range is shorter than expected. | Ostruzzjonijiet (ħitan ħoxnin, strutturi tal-metall) jew interferenza. | Ensure antenna is fully extended. Reposition pager or receiver to minimize obstructions. |
| Il-buttuni ma jirrispondux jew huma mwaħħlin. | Debris or liquid under the button. | Clean the button area. If issue persists, contact support. |
7. Speċifikazzjonijiet
- Numru tal-Mudell: FF9460A (TD006)
- Dimensjonijiet tal-Prodott: 6.22 x 3.94 x 1.93 pulzieri
- Piż tal-oġġett: 11.5 uqija
- Manifattur: Retekess
- Batterija: 1 x 12V/23A battery (included)
- Medda ta' Trażmissjoni: Sa 300 metru (spazju miftuħ)
- Kompatibilità: Retekess T114 and T128 receivers
8. Garanzija u Appoġġ
For warranty information, please refer to the documentation provided with your purchase or visit the official Retekess website. For technical support, troubleshooting assistance, or to inquire about compatible receivers and accessories, please contact Retekess customer service through their official channels.
Riżorsi onlajn:
- Uffiċjali ta' Retekess Websit: www.retekess.com
- Amazon Store: Ħanut Retekess fuq Amazon
