Retevis RT3S DMR Radio: Analog and Digital Combined Amateur Radio Instruction Manual

1. Introduzzjoni

The Retevis RT3S is a versatile dual-band digital and analog amateur radio designed for reliable communication. It supports Digital Mobile Radio (DMR) technology, including MOTOTRBO Tier I and II series, and offers features like dual time slots for repeaters, extensive channel capacity, and programmable functions. This manual provides essential information for setting up, operating, and maintaining your RT3S radio.

2. X'hemm fil-Kaxxa

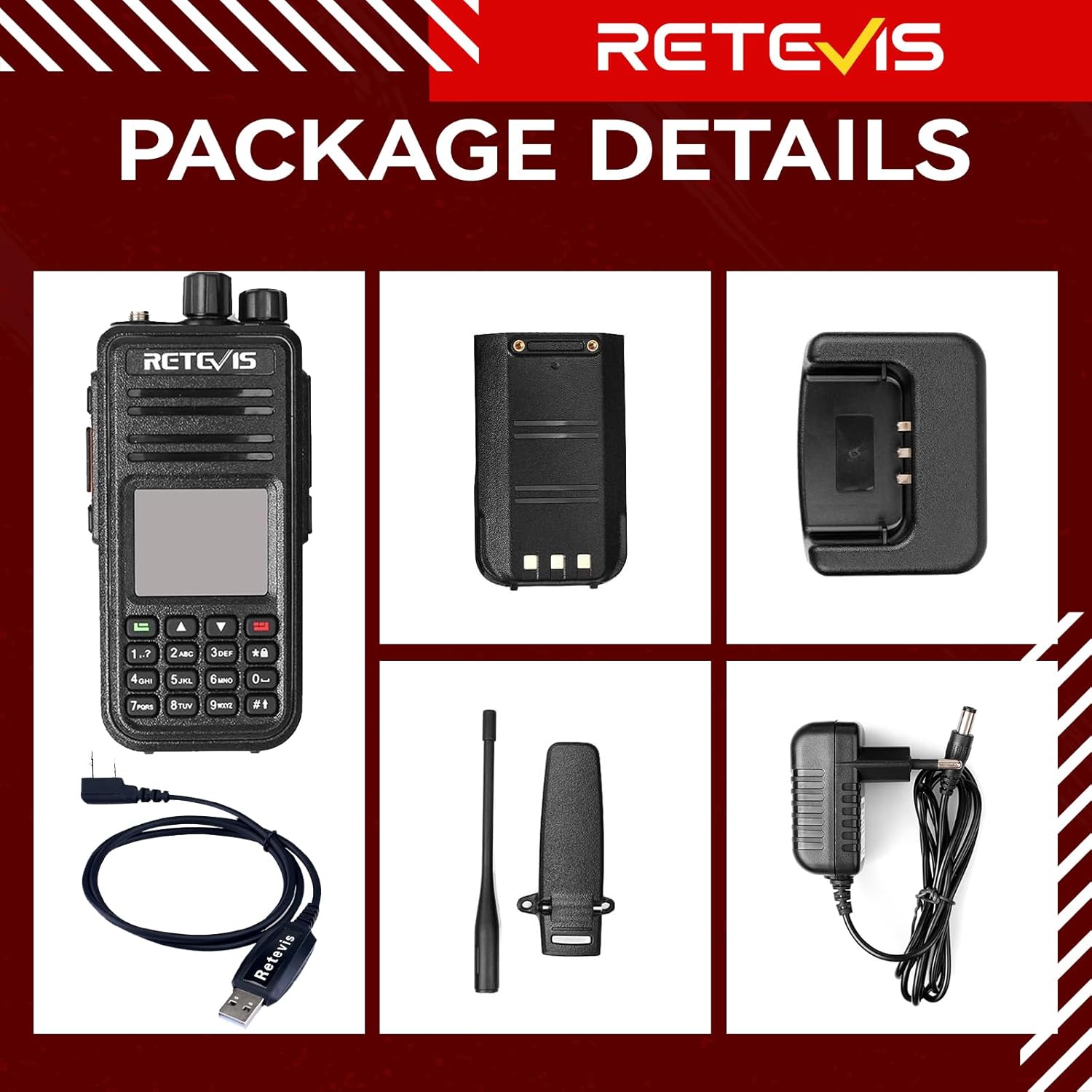

Upon opening your Retevis RT3S package, you should find the following items:

• 1 x Retevis RT3S Walkie-Talkie
• 1 x Battery
• 1 x Adapter
• 1 x Antenna
• 1 x Charger
• 1 x Clip taċ-ċinturin
• 1 x Lanyard
• 1 x Manwal għall-Utent

3. Karatteristiċi tal-prodott

• The RT3S DMR amateur radio features 3000 channels, channel scanning, and a DTMF keypad. It is compatible with MOTOTRBO Tier I and II series.
• Switchable digital/analog mode. Supports text messages in digital mode, providing clearer voice communications.
• Equipped with a 2000 mAh lithium battery, offering up to 16 hours of working time and 48 hours of standby time.
• The DMR walkie-talkie can monitor signals on two channels and combine U-U / U-V / V-V in both digital and analog modes to prevent missing call information.
• Group call and all calls; 10,000 contacts; multifunctional communication. All can be easily managed to improve work efficiency.
• 2 time slots; CTCSS/DCS and DTMF function to filter irrelevant signals.
• The recording function helps remember important conversations and allows for repeated listening. Supports PC and manual settings.

4. Setup

4.1. Installazzjoni tal-batterija

Align the battery with the grooves on the back of the radio and slide it into place until it clicks securely. To remove, press the release latch and slide the battery off.

4.2. Twaħħil tal-Antenna

Screw the antenna clockwise onto the connector on top of the radio until it is firmly seated. Do not overtighten.

4.3. Iċċarġjar tal-batterija

Connect the adapter to the charger base, then plug the adapter into a power outlet. Place the radio (with battery installed) into the charger base. The indicator light on the charger will show the charging status (typically red for charging, green for fully charged).

4.4. Initial Programming (Optional)

While basic functions can be set directly on the radio, advanced features and a large number of contacts/channels are best programmed using a PC with the appropriate software and programming cable. The RT3S supports importing up to 500,000 contacts via CSV file.

5. Istruzzjonijiet Operattivi

5.1. Mixgħul/Mitfi u Kontroll tal-Volum

Rotate the Power/Volume knob clockwise to turn the radio on and increase volume. Rotate counter-clockwise to decrease volume and turn the radio off.

5.2. Għażla tal-Kanal

Use the Channel-selecting knob on top of the radio to navigate through available channels. Alternatively, use the keypad for direct channel input or menu navigation.

5.3. Buttuna Push-to-Talk (PTT)

Press and hold the PTT button on the side of the radio to transmit. Release it to receive.

5.4. Programmable Side Keys

The RT3S features programmable side keys that can be customized for quick access to various functions such as scanning, alarm, or other settings. Refer to the programming software for configuration options.

5.5. Digital and Analog Mode Switching

The radio supports both digital (DMR) and analog modes. This can typically be switched via the menu settings or pre-programmed channels.

5.6. Contact Management and Calls

The RT3S supports individual calls, group calls, and all calls. Contacts can be managed through the radio's menu or via PC software.

5.7. Funzjoni ta' Skennjar

Activate the scanning function to monitor active channels within a programmed zone or frequency range. This can be assigned to a programmable side key for quick access.

5.8. NOAA Weather Channel Reception

The RT3S can receive NOAA weather forecast channels (where available) to keep you informed of real-time weather changes.

5.9. Encryption (DMR Mode)

In DMR mode, the RT3S supports ARC/AES-128/AES-256 encryption for secure communications. This setting is configured via the programming software.

6. Manutenzjoni

6.1. Tindif

Imsaħ il-wiċċ tar-radju b'ċarruta ratba uamp cloth. Do not use harsh chemicals or solvents. Ensure the radio is dry before use or charging.

6.2. Kura tal-batterija

Biex ittawwal il-ħajja tal-batterija, evita li tiċċarġja żżejjed jew li tiskarika kompletament il-batterija. Aħżen ir-radju u l-batterija f'post frisk u niexef meta ma tkunx qed tużahom għal perjodi twal.

6.3. Kura tal-Antenna

Ensure the antenna is securely attached. Avoid bending or twisting the antenna excessively, as this can damage the connector or the antenna itself.

7 Issolvi l-problemi

7.1. Ebda Qawwa

• Iċċekkja jekk il-batterija hijiex installata u ċċarġjata sew.
• Ensure the Power/Volume knob is turned on.

7.2. Cannot Transmit or Receive

• Verify that the antenna is correctly attached.
• Check if the radio is on the correct channel and frequency.
• Kun żgur li l-batterija għandha ċarġ suffiċjenti.
• Confirm that the squelch level is set appropriately.

7.3. Kwalità tal-Awdjo Fqira

• Aġġusta l-livell tal-volum.
• Check for obstructions between radios or interference sources.
• Ensure the microphone and speaker are clear of debris.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Retevis provides a 2-year warranty for the radio body and a 1-year warranty for accessories. A 30-day no-reason return policy is also offered. Beyond the warranty period, maintenance services are available, with buyers responsible for associated costs. For support, please contact Retevis through Amazon, and a response will be provided within 12 hours.
