1. Introduzzjoni
Thank you for choosing the Taurus Silent Power 18-inch Pedestal Fan. This fan is designed to provide efficient and quiet cooling for your home or office. Featuring the exclusive ECOJET grille, it delivers enhanced airflow with reduced noise. Please read this manual thoroughly before assembly, operation, or maintenance to ensure safe and optimal performance.
2. Istruzzjonijiet Importanti dwar is-Sigurtà
Meta tuża apparat elettriku, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi ta’ sigurtà biex jitnaqqas ir-riskju ta’ nar, xokk elettriku u korriment lill-persuni, inkluż dan li ġej:
- Aqra l-istruzzjonijiet kollha qabel tuża dan il-fann.
- Tħaddem ebda fann b'korda jew plagg bil-ħsara. Armi l-fann jew erġa' lura f'faċilità ta' servizz awtorizzata għal eżami u/jew tiswija.
- Tmexxix korda taħt it-twapet. Tgħattix il-korda b'twapet tat-twapet, runners, jew kisi simili. Tgħaddix il-korda taħt l-għamara jew l-apparat. Irranġa l-korda 'l bogħod miż-żona tat-traffiku u fejn ma titfixkelx.
- Always unplug the fan from the power outlet when not in use, when moving the fan from one location to another, and before cleaning.
- Tgħaddix il-fann fl-ilma jew likwidi oħra.
- Do not allow children to play with the fan. Close supervision is necessary when any appliance is used by or near children.
- Daħħalx subgħajk jew xi oġġetti oħra mill-gradilja meta l-fann ikun qed jaħdem.
- Kun żgur li l-fann jitqiegħed fuq wiċċ stabbli u livellat biex tevita li jinqaleb.
- This fan is for indoor use only. Do not use outdoors.
- Tħaddimx il-fann fil-preżenza ta' dħaħen splussivi u/jew li jaqbdu.
3. Kontenut tal-Pakkett
Jekk jogħġbok iċċekkja l-kontenut tal-pakkett biex tiżgura li l-partijiet kollha huma preżenti u bla ħsara:
- Motor Unit with Rear Grille
- Xfafar tal-Fann
- Gralja ta 'quddiem
- Nut li Jwaħħal il-Gradilja
- Arblu tal-Istand Aġġustabbli
- Bażi
- Power Cord (attached to motor unit)

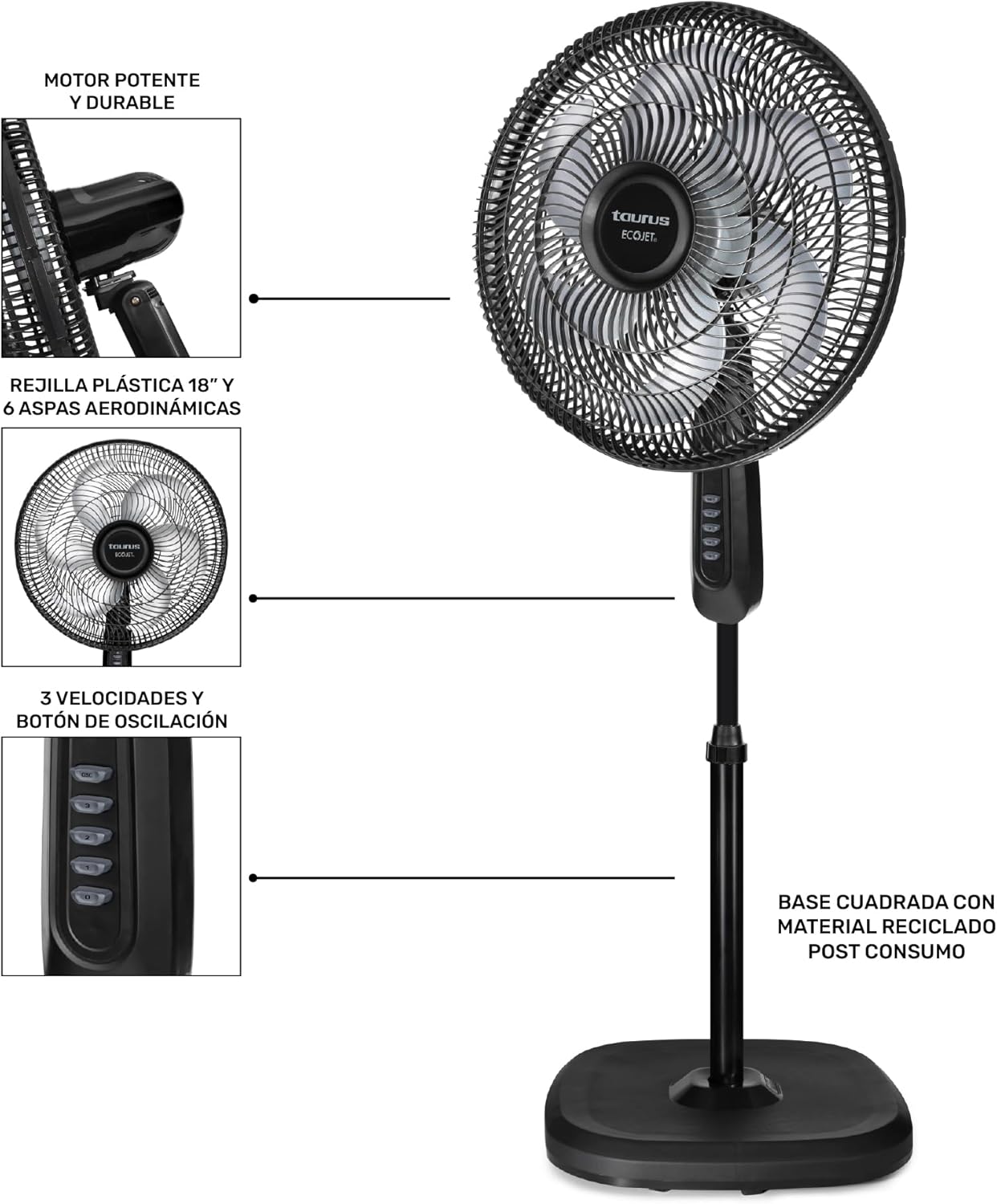

Figura 3.1: Components of the Taurus Silent Power 18-inch Pedestal Fan. This image shows the motor unit, plastic 18-inch grille, 6 aerodynamic blades, 3 speeds, oscillation button, and the square base made from recycled post-consumer material.
4. Istruzzjonijiet tal-Assemblea
The Taurus Silent Power fan is designed for quick and easy assembly without the need for tools.
- Arma l-Bażi: Attach the adjustable stand pole to the square base. Ensure it is securely fitted.
- Waħħal l-Unità tal-Mutur: Place the motor unit onto the top of the adjustable stand pole and secure it.
- Installa x-Xfafar tal-Fann: Carefully slide the fan blades onto the motor shaft. Ensure they are properly aligned and secured with the provided cap or nut.
- Waħħal il-Grillja ta' Quddiem: Position the front grille over the blades and secure it to the rear grille using the grille securing nut or clips. Ensure the grille is firmly closed to prevent accidental contact with the blades.
- Aġġusta l-Għoli: Loosen the height adjustment knob on the stand pole, extend or retract the pole to the desired height, and then tighten the knob securely.
- Optional Wall Mount: This fan can also be wall-mounted. Refer to the specific instructions provided in the packaging for wall mounting hardware and procedure.
Figura 4.1: Securely attach the stand pole to the fan base.
Figura 4.2: The fan features 6 aerodynamic blades for optimal airflow.
Figura 4.3: The fan can be used as a pedestal, table, or wall-mounted unit.
5. Istruzzjonijiet Operattivi
Once assembled, plug the fan into a suitable electrical outlet.
Figura 5.1: Control panel with speed and oscillation buttons.
- Għażla tal-Mixgħul/Veloċità: Press the speed buttons (1, 2, or 3) on the control panel to turn the fan on and select your desired airflow speed.
- 1: Veloċità baxxa għal ċirkolazzjoni ġentili tal-arja.
- 2: Veloċità medja għal tkessiħ moderat.
- 3: Veloċità għolja għall-massimu fluss tal-arja.
- Itfi: Press the "0" button to turn the fan off.
- Funzjoni ta 'Oxxillazzjoni: Press the "OSC" button to activate the oscillation feature, which allows the fan head to sweep from side to side, distributing air over a wider area. Press the "OSC" button again to stop oscillation.
- Aġġustament tal-inklinazzjoni: The fan head can be manually tilted up or down to direct airflow. Gently adjust the head to the desired angle.
Figura 5.2: The fan offers 75-degree horizontal oscillation and an adjustable tilt head for optimal air distribution.
6. Manutenzjoni
Tindif regolari jgħin biex iżomm il-prestazzjoni tal-fann tiegħek u jtawwal il-ħajja tiegħu.
- Qabel it-Tindif: Dejjem aqla’ l-fann mill-plagg tal-elettriku qabel ma tnaddaf.
- Tindif ta' barra: Uża artab, damp drapp biex timsaħ l-uċuħ ta’ barra tal-fann. Tużax prodotti tat-tindif jew solventi li joborxu, għax dawn jistgħu jagħmlu ħsara lill-finitura.
- Tindif tal-Grille u x-Xfafar: To clean the fan blades and inside the grilles, you may need to carefully remove the front grille. Refer to the assembly instructions for reverse steps. Use a soft cloth or a vacuum cleaner with a brush attachment to remove dust and debris from the blades and grilles. Ensure all parts are completely dry before reassembling and operating the fan.
- Ħażna: Meta ma tkunx qed tużah għal perjodi twal, aħżen il-fann f'post frisk u niexef, preferibbilment fl-imballaġġ oriġinali tiegħu.
7 Issolvi l-problemi
If you experience issues with your fan, please consult the following troubleshooting guide:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-fann ma jixgħelx. | Ebda provvista ta 'enerġija. Il-fann mhux imdaħħal. Power outlet faulty. | Kun żgur li l-fann huwa pplaggjat sew f'sokit elettriku li jaħdem. Iċċekkja s-circuit breaker. Try plugging another appliance into the same outlet to verify power. |
| Fluss tal-arja dgħajjef jew xejn. | Il-veloċità tal-fann hija baxxa wisq. Il-gradilji jew ix-xfafar huma maħmuġin. Obstruction blocking airflow. | Żid l-issettjar tal-veloċità tal-fann. Skonnettja l-fann u naddaf il-gradilji u x-xfafar skont l-istruzzjonijiet tal-manutenzjoni. Ensure nothing is blocking the front or rear grilles. |
| Il-fann qed jagħmel ħoss mhux tas-soltu. | Partijiet sfużi. Il-fann mhux fuq wiċċ stabbli. Debris inside the grille. | Unplug the fan and check for any loose components, especially the grilles and blades. Poġġi l-fann fuq wiċċ sod u livellat. Unplug the fan and clean any debris from the blades and grilles. |
| L-oxxillazzjoni mhux qed taħdem. | Il-buttuna tal-oxxillazzjoni mhux ippressata. Kwistjoni ta' mekkaniżmu intern. | Press the "OSC" button on the control panel. Jekk il-kwistjoni tippersisti, ikkuntattja l-appoġġ tal-klijent. |
8. Speċifikazzjonijiet
Key technical specifications for the Taurus Silent Power 18-inch Pedestal Fan:
- Ditta: Taurus
- Isem tal-Mudell: SILENT POWER
- Disinn tal-Fann Elettriku: Floor Fan (Pedestal Fan)
- Kulur: Iswed
- Dimensjonijiet tal-Prodott (P x W x H): 19.7" x 17.33" x 53.15" (50 ċm x 44 ċm x 135 ċm)
- Piż tal-oġġett: 4 Kilogrammi
- Sors tal-Enerġija: AC/DC
- Wattage: 90 watt
- Voltage: 127 Volts
- Numru ta' Veloċitajiet: 3
- Livell ta' Storbju: 49 Deċibel
- Numru ta 'xfafar: 6
- Materjal: Plastik
- Metodu ta' Kontroll: Touch (buttons on control panel)
- Karatteristiċi Speċjali: Manual control, Oscillating, Adjustable Height, Tilt Head, ECOJET Grille
- Użu ta' ġewwa u barra: Ġewwa biss
- Użi Rakkomandati: House, Bedroom, Offices, Living room
Figura 8.1: Dimensions of the Taurus Silent Power Pedestal Fan.
9. Garanzija u Appoġġ
For warranty information, please refer to the documentation included with your product at the time of purchase or visit the official Taurus website. If you require technical support or have questions not covered in this manual, please contact Taurus customer service.
