Zamp Solar 8-Amp Waterproof/Weatherproof Solar Charge Controller User Manual

1. Introduzzjoni

This manual provides essential information for the safe and effective operation of your Zamp Solar 8-Amp Waterproof/Weatherproof Solar Charge Controller, model ZS-8AW. This 5-stage PWM charge controller is designed to protect and optimize the charging of 12-volt AGM, Conventional lead-acid (Wet), Gel, and Calcium batteries from solar panels up to 135 watts. It prevents battery overcharge, improves charge quality, and prevents discharge in low or no light conditions, extending battery life.

2. Informazzjoni dwar is-Sigurtà

Aqra l-istruzzjonijiet kollha bir-reqqa qabel l-installazzjoni u t-tħaddim. Jekk ma ssegwix dawn l-istruzzjonijiet, dan jista' jirriżulta f'xokk elettriku, nar, jew korriment serju.

• Always disconnect the solar panel from the charge controller before connecting or disconnecting the battery.
• Ensure all wiring is correctly polarized (positive to positive, negative to negative). Incorrect wiring can damage the controller and battery.
• Install the controller in a well-ventilated area, away from flammable materials.
• Do not attempt to disassemble or repair the controller. Refer all servicing to qualified personnel.
• This controller is designed for 12-volt battery systems only. Do not connect to 24-volt or higher systems.
• Ensure the solar panel's open circuit voltage (Voc) does not exceed 25 volts.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti:

• Zamp Solar 8-Amp Waterproof/Weatherproof Solar Charge Controller (ZS-8AW)
• Manwal għall-Utent (dan id-dokument)

4. Karatteristiċi

• Safely charges 12-volt battery banks, preventing overcharge.
• Compatible with solar panels up to 135 watts.
• Easy installation with clearly marked positive and negative terminals for battery and solar input.
• LED indicators for charging status (fast, slow), battery full, and system fault.
• Supports four battery types: AGM, WET (Conventional lead-acid), GEL, and Calcium, selectable via DIP switch settings.
• Waterproof/Weatherproof design for outdoor use.
• 5-Stage PWM (Pulse Width Modulation) charging for optimal battery health.

5. Setup u Installazzjoni

Segwi dawn il-passi għal installazzjoni xierqa:

1. Immuntar: The ZS-8AW is designed for surface mounting. Choose a location that is accessible, well-ventilated, and protected from direct sunlight if possible, although the unit is weatherproof.
2. Għażla tat-Tip tal-Batterija: Before connecting any wires, set the DIP switches on the back of the controller to match your battery type. Refer to the diagram below for switch settings.

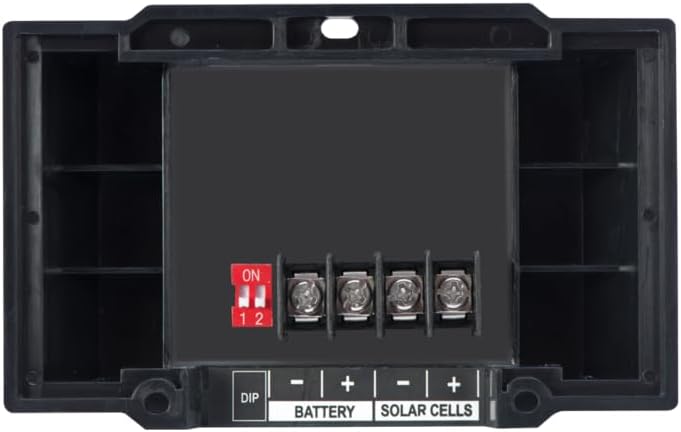

   Figura 1: Wara view of the ZS-8AW controller, showing the DIP switches (red, labeled ON 1 2) and the battery and solar cell terminals.

   DIP Switch Settings for Battery Type

   Tip ta 'batterija	Swiċċ DIP 1	Swiċċ DIP 2
   AGM	OFF	OFF
   WET (Lead-Acid)	ON	OFF
   ĠEL	OFF	ON
   Kalċju	ON	ON

3. Konnessjonijiet tal-Wiring:

   Connect wires in the following order to prevent damage:

   1. Qabbad mal-Batterija: Connect the positive (+) battery cable to the "BATTERY +" terminal on the controller. Then, connect the negative (-) battery cable to the "BATTERY -" terminal. The controller's LEDs should illuminate, indicating it has power.
   2. Qabbad mal-Panel Solari: Connect the positive (+) solar panel cable to the "SOLAR CELLS +" terminal on the controller. Then, connect the negative (-) solar panel cable to the "SOLAR CELLS -" terminal.

   Kun żgur li l-konnessjonijiet kollha huma siguri u ħielsa mill-korrużjoni.

6. Istruzzjonijiet Operattivi

The ZS-8AW controller operates automatically once connected. Its LED indicators provide real-time status information:

Figura 2: Quddiem view of the ZS-8AW controller with LED indicators.

• LED TA' ĦSARA:
  • MITFI: No fault detected.
  • ON (Aħmar): Indicates a system fault, such as reverse polarity, over-voltage, or short circuit. Disconnect all power and check connections.
• LED JIĊARĠIJA:
  • MITFI: No charging occurring (e.g., no solar input, battery full, or fault).
  • SLOW FLASH (Green): Indicates the battery is in a "float" or maintenance charge stage.
  • FAST FLASH (Green): Indicates the battery is in a "bulk" or "absorption" charge stage, receiving a significant charge.
• LED SĦIĦA:
  • MITFI: Battery is not yet full.
  • ON (Aħdar): Battery is fully charged. The controller will maintain the battery at this level.

The controller automatically adjusts charging based on battery state and solar input, ensuring optimal battery health and preventing overcharging.

7. Manutenzjoni

The ZS-8AW controller requires minimal maintenance due to its weatherproof design. However, periodic checks are recommended:

• Konnessjonijiet: Periodically inspect all wiring connections for tightness and corrosion. Ensure terminals are clean.
• Indafa: Keep the controller's exterior clean. Wipe off any dust or debris with a soft, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
• Ambjent: Ensure the mounting area remains free of obstructions that could impede airflow around the unit, although passive cooling is sufficient for this low-power controller.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

For warranty information or technical support, please contact Zamp Solar directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official Zamp Solari webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Id-dettalji ta' kuntatt tipikament jinstabu fuq l-imballaġġ tal-prodott jew fuq il-manuskritt tal-manifattur. websit.
