1. Introduzzjoni
Thank you for choosing the SunSun CTF-1600B SuperECO Pond Pump. This pump is designed for efficient water circulation in garden ponds, fountains, and large aquariums, offering high performance with low energy consumption. Please read this manual carefully before installation and operation to ensure safe and optimal use of your product.
The SunSun CTF-1600B SuperECO Pond Pump submerged in a pond, demonstrating its typical installation connected to a filtration system.
Karatteristiċi ewlenin:
- Maximum flow rate of 16000 liters per hour (l/h).
- Power consumption of 140 Watts.
- Maximum pumping height of 7.5 meters.
- Capable of handling dirt particles up to 6 mm.
- Equipped with a durable ceramic shaft motor for wear and corrosion resistance.
- Suitable for both fresh and saltwater applications.
- Includes a 10-meter power cable.
Eż. viżwaliamples of the pump's versatile applications, including garden ponds, fountains, large aquariums, and artificial streams.
2. Istruzzjonijiet tas-Sigurtà
Dejjem segwi dawn il-linji gwida tas-sigurtà biex tevita korriment jew ħsara lill-prodott:
- Aqra l-istruzzjonijiet kollha: Before operating the pump, read and understand all safety and operating instructions.
- Sigurtà Elettrika: Żgura li l-provvista tal-enerġija taqbel mal-voltage specified on the pump's label. Always connect the pump to a grounded outlet. Do not operate the pump if the power cord or plug is damaged.
- Immersjoni fl-Ilma: This pump is designed for submersible use only. Never operate the pump dry.
- Tfal u Pets: Keep children and pets away from the pump and pond area during operation and maintenance.
- Manutenzjoni: Always disconnect the power supply before performing any maintenance, cleaning, or assembly tasks.
- Firxa tat-Temperatura: The pump is designed to operate in water temperatures between 4°C and 35°C.
- Immaniġġjar: Do not lift or carry the pump by its power cord.
- Modifiki: Do not attempt to modify the pump or its components. Use only original spare parts.
The pond pump shown with a skimmer attachment. Important: This device can only be used in water!
3. Setup u Installazzjoni
Follow these steps to properly set up your SunSun CTF-1600B pond pump:
- Spakkjar: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Iċċekkja għal kwalunkwe ħsara.
- Konnessjoni tal-manka: Attach the appropriate hose connector (25mm, 33mm, or 38mm) to the pump's outlet. Ensure a secure fit to prevent leaks.
- Pjazzament: Place the pump fully submerged in the pond. Ensure it rests on a stable, level surface, away from excessive sludge or debris that could block the intake. The pump is designed to move dirt particles up to 6mm, but excessive blockage can reduce efficiency.
- Skimmer Connection (Optional): If using a skimmer, connect it to the designated inlet on the pump as shown in the diagram.
- Konnessjoni tal-Enerġija: Once the pump is securely placed and all connections are made, plug the 10-meter power cable into a grounded electrical outlet.
A detailed exploded diagram of the CTF-16000 pump, showing all individual components and their corresponding numbers, along with a table listing each part's name for assembly and maintenance reference.
| Nru. | Isem tal-Parti | Nru. | Isem tal-Parti |
|---|---|---|---|
| 1 | Blue Top Cover | 2 | Ċ ta' Fuqasing Part |
| 3 | Appoġġ | 4 | Appoġġ |
| 5 | Mutur | 6 | Appoġġ tal-Pompa |
| 7 | T'isfel Casing Part | 8 | O-ring 1 |
| 9 | Qoxra tal-Bearing | 10 | Filwaqt |
| 11 | Rotor | 12 | Qoxra tar-rotor |
| 13 | O-ring 2 | 14 | Flanġ 1 |
| 15 | Ċirku bil-kamin | 16 | O-ring 3 |
| 17 | Żbokk | 18 | O-ring 4 |
| 19 | Flanġ 2 | 20 | Blue Side Cover |
4. Istruzzjonijiet Operattivi
Operating the SunSun CTF-1600B pump is straightforward:
- Start-up Inizjali: After ensuring the pump is fully submerged and connected, plug it into the power outlet. The pump will start automatically.
- Monitoraġġ: Observe the water flow to ensure proper operation. The pump is designed for continuous operation.
- Għalaq: Biex titfi l-pompa, sempliċement aqlagħha mill-plagg tal-elettriku.
- Aġġustament tal-fluss: This model does not feature adjustable flow control. The pump operates at its maximum flow rate of 16000 l/h.
Intern view highlighting the durable ceramic shaft motor, designed for wear resistance, suitability for saltwater, and corrosion-free operation.
5. Manutenzjoni
Regular maintenance ensures the longevity and efficiency of your pump:
- Skonnettja l-Enerġija: Always unplug the pump from the power source before any maintenance.
- CasinTindif: Periodically remove the pump from the water and clean the outer casing to remove accumulated debris.
- Aċċess għall-Impeller: To clean the impeller, carefully open the pump casing. This typically involves unscrewing the retaining screws.
Illustration of how to access the internal components of the pump by unscrewing the casing, a necessary step for cleaning and inspection.
- Tindif tal-Impeller: Remove the impeller and clean it thoroughly with a soft brush under running water. Ensure no debris is lodged in the impeller blades or the motor housing.
Demonstration of cleaning the pump's impeller and motor housing with a brush to remove debris and maintain optimal performance.
- Assemblaġġ mill-ġdid: Reassemble the pump in reverse order, ensuring all seals and O-rings are correctly seated to prevent water ingress.
- Winterization: During freezing temperatures, remove the pump from the pond, clean it thoroughly, and store it in a frost-free location.
An image showing disassembled pump parts, including the impeller and housing, being thoroughly cleaned with a brush under running water to ensure longevity and efficiency.
6 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-pompa tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-pompa ma tibdax | Ebda provvista ta 'enerġija Impeller imblukkat Mutur bil-ħsara | Iċċekkja l-konnessjoni tal-enerġija u l-iżbokk Disconnect power and clean impeller Ikkuntattja l-appoġġ tal-klijent |
| Mnaqqsa tal-fluss tal-ilma | Clogged intake or hose Impeller partially blocked Excessive head height | Clean intake screen and hose Disconnect power and clean impeller Ensure pump is not exceeding its maximum head |
| Il-pompa tagħmel storbju mhux tas-soltu | Debris fl-impeller Berings milbus Operating dry | Disconnect power and clean impeller Ikkuntattja l-appoġġ tal-klijent Ensure pump is fully submerged |
| Tnixxija tal-ilma | Konnessjoni tal-pajp laxka Ċrieki/siġilli O-rings bil-ħsara | Issikka l-konnessjonijiet tal-pajp Spezzjona u ibdel l-O-rings/siġilli jekk meħtieġ |
7. Speċifikazzjonijiet
Detailed technical specifications for the SunSun CTF-1600B SuperECO Pond Pump:
- Numru tal-Mudell: 50356
- Ditta: SunSun
- Materjal: Plastik
- Kulur: Iswed, Blu
- Dimensjonijiet (L x W x H): 30.7 ċm x 22.9 ċm x 10.2 ċm
- Piż: 4.7 Kilogrammi
- Sors tal-Enerġija: Corded Elettriku
- Rata massima tal-fluss: 16000 Litri fis-siegħa
- Konsum tal-Enerġija: 140 Watts
- Għoli Massimu tal-Ippumpjar: 7.5-il metru
- Particle Size Handling: Sa 6 mm
- Konnessjoni tal-manka: 25 / 33 / 38mm (~1-1 1/2 inches)
- Tul tal-Cable: 10-il metru
- Klassifikazzjoni tal-IP: IPX8 (Suitable for continuous submersion up to 2m)
- Temperatura operattiva: 4°C - 35°C

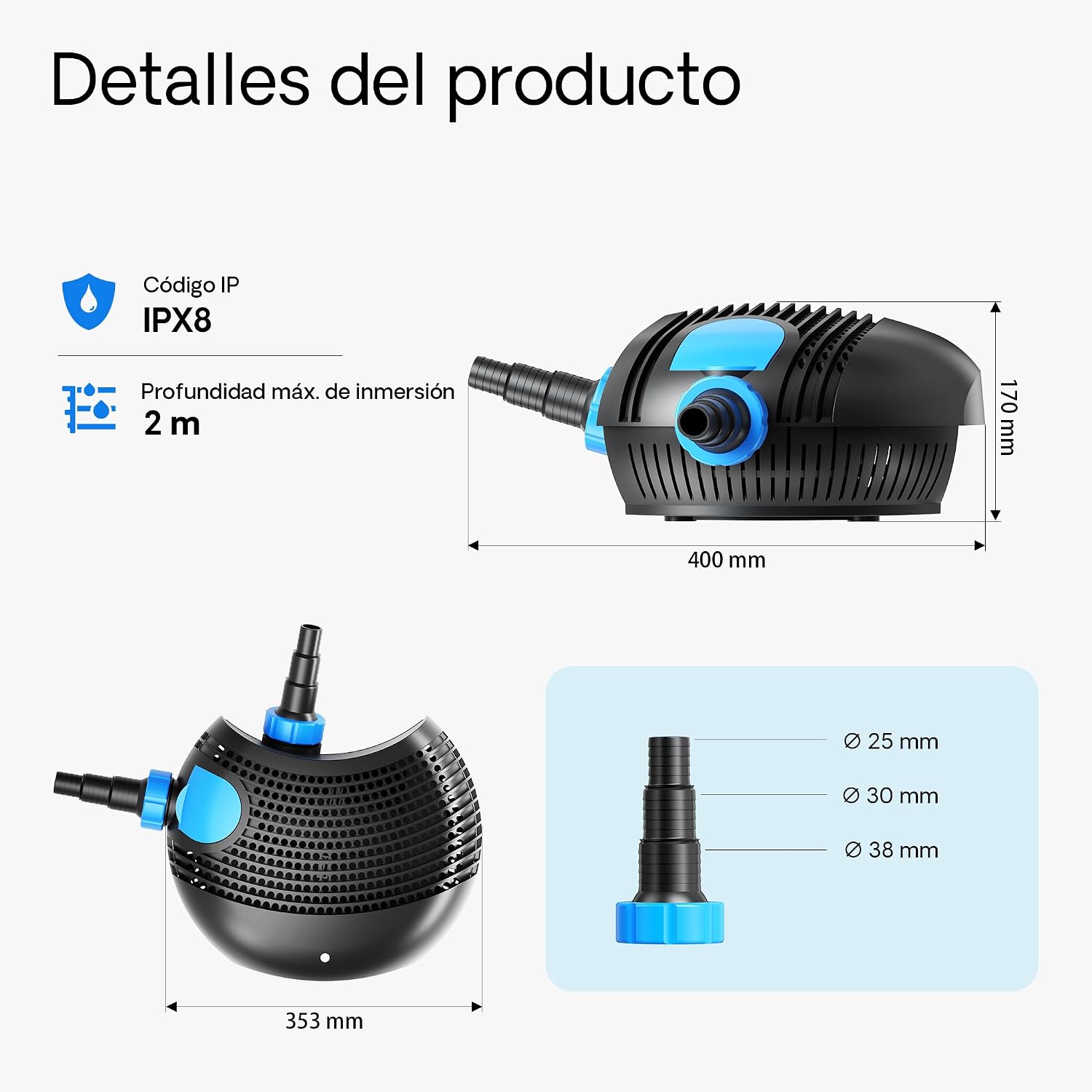

Prodott dettaljat view showing the pump's dimensions (400mm length, 353mm width, 170mm height) and its IPX8 waterproof rating, indicating suitability for continuous submersion up to 2 meters.
A graph illustrating the relationship between pump head (H in meters) and output flow rate (L/h) for various CTF series models, including the CTF-1600B, indicating its maximum head of 7.5m and flow of 16000 l/h.
8. Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija u appoġġ għall-klijenti, jekk jogħġbok irreferi għad-dokumentazzjoni pprovduta max-xiri tiegħek jew ikkuntattja lill-bejjiegħ tiegħek. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba dwar il-garanzija.
For technical assistance or inquiries, please visit the official SunSun websit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom.
