1. Introduzzjoni
Thank you for choosing the Hansgrohe Marin Multi 3-Jet Hand Shower. This product is designed to provide a versatile and efficient showering experience with its three distinct spray types and water-saving technology. This manual provides essential information for the safe installation, operation, and maintenance of your new hand shower.

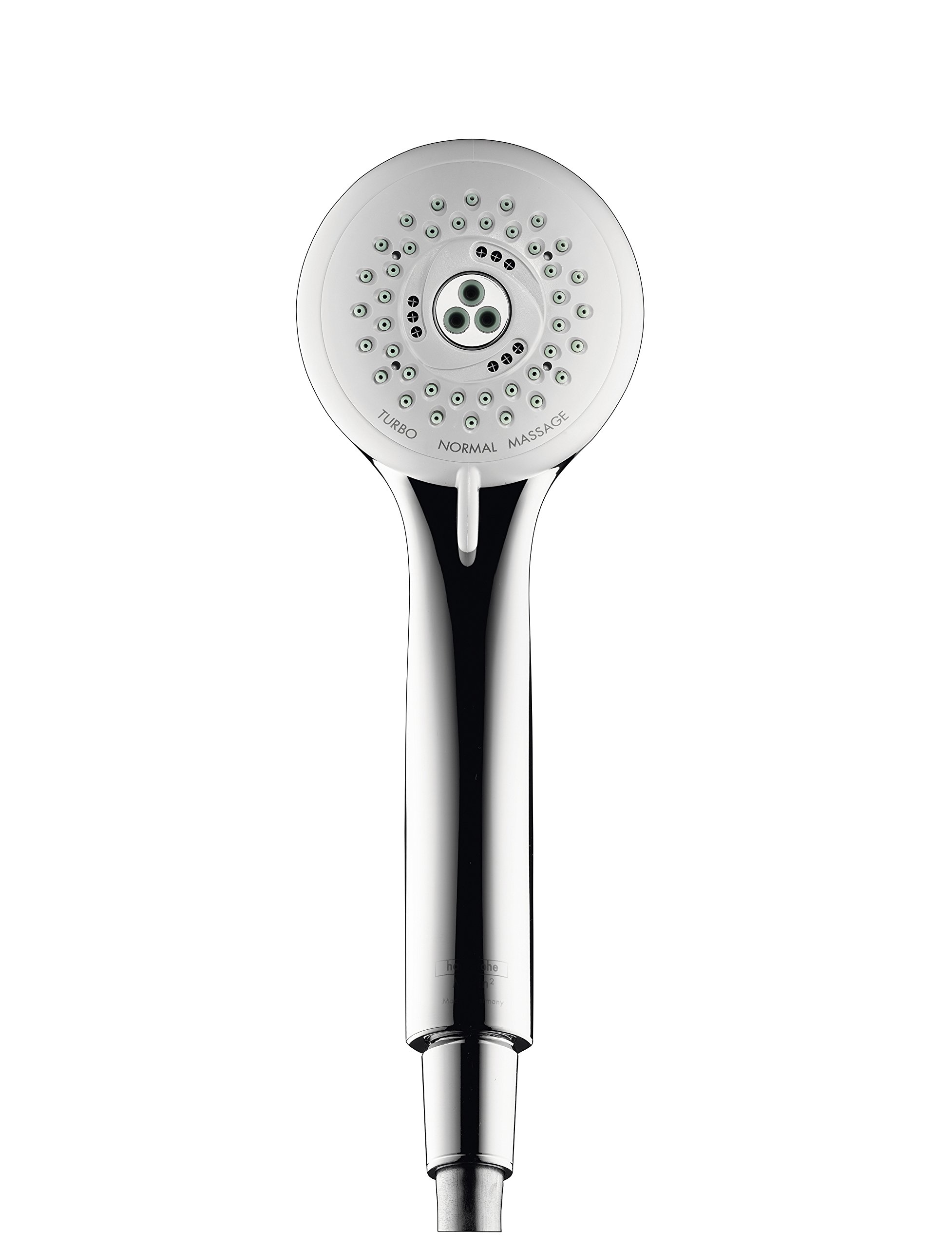

Image 1.1: The Hansgrohe Marin Multi 3-Jet Hand Shower, showcasing its chrome finish and ergonomic design.
2. Informazzjoni dwar is-Sigurtà
Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel l-installazzjoni u l-użu. Żomm dan il-manwal għal referenza futura.
- Ensure that the water supply is turned off before beginning any installation or maintenance work.
- Do not use abrasive cleaners or solvents, as these can damage the surface finish.
- The maximum operating pressure for this hand shower is 6 bars. Ensure your household water pressure does not exceed this limit.
- Ipproteġi l-prodott mill-ġlata.
3. Setup u Installazzjoni
The Hansgrohe Marin Multi hand shower is designed for easy installation. It connects to a standard shower hose (G 1/2 connection thread).
3.1 Għodod Meħtieġa (Mhux Inklużi)
- Wrench jew tnalji aġġustabbli
- Sealant tape (optional, for extra leak prevention)
3.2 Passi ta' Installazzjoni
- Kun żgur li l-provvista prinċipali tal-ilma għad-doċċa tiegħek tkun mitfija.
- Unscrew your old hand shower from the shower hose.
- Ensure the rubber washer is correctly seated in the connection nut of the new Hansgrohe hand shower.
- Screw the Hansgrohe Marin Multi hand shower onto your existing shower hose by hand until it is finger-tight.
- Using an adjustable wrench or pliers, gently tighten the connection an additional quarter turn. Do not overtighten.
- Turn on the main water supply and check for leaks. If leaks occur, gently tighten further or re-check the washer.
Image 3.1: Dimensional drawing of the hand shower, indicating a diameter of 85mm and a G 1/2 connection thread.
4. Istruzzjonijiet Operattivi
The Hansgrohe Marin Multi hand shower offers three distinct spray types for a personalized showering experience.
4.1 Changing Spray Types
To switch between the spray types, simply rotate the spray disc on the hand shower head. The available spray types are:
- Normal Spray: A full, rich spray for everyday showering.
- Massage Spray: A concentrated, pulsating spray for invigorating massage.
- Turbo Spray: A powerful, focused spray for rinsing and deep cleaning.

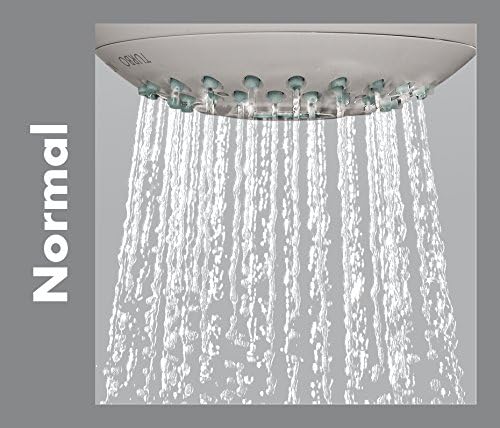

Image 4.1: The Normal spray setting, providing a wide and even water distribution.
Image 4.2: The Massage spray setting, featuring concentrated water jets for a stimulating effect.

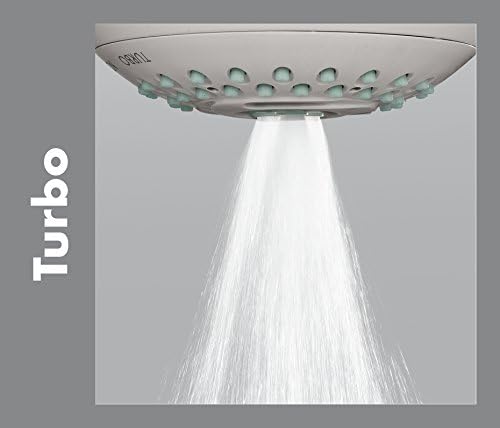

Image 4.3: The Turbo spray setting, delivering a strong, focused stream of water.
4.2 EcoSmart Function
The hand shower is equipped with Hansgrohe EcoSmart technology, which reduces water consumption by up to 40% compared to conventional showers, without compromising the showering experience. This feature is integrated into the hand shower and operates automatically.
Image 4.4: The EcoSmart symbol, highlighting the product's water-saving capability.
5. Manutenzjoni u Tindif
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hand shower.
5.1 QuickClean Anti-Limescale System
The hand shower features Hansgrohe QuickClean technology. Limescale deposits on the silicone nozzles can be easily removed by gently rubbing them with your finger. This ensures a consistent spray pattern and extends the product's lifespan.
Image 5.1: Demonstrating the QuickClean function, where limescale can be easily wiped off the flexible silicone nozzles.
5.2 Tindif Ġenerali
- Clean the hand shower regularly with a soft cloth and a mild, non-abrasive cleaning agent.
- Rinse thoroughly with clean water after cleaning to remove any cleaner residue.
- Tużax aġenti tat-tindif li fihom aċidu idrokloriku, aċidu formiku, bliċ tal-kloru, jew aċidu aċetiku, għax dawn jistgħu jikkawżaw ħsara sinifikanti.
6 Issolvi l-problemi
If you encounter issues with your hand shower, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Pressjoni baxxa tal-ilma | Limescale buildup in nozzles; kinked shower hose; low household water pressure. | Clean nozzles using QuickClean. Check shower hose for kinks. Consult a plumber if household pressure is consistently low. |
| Mudell irregolari tal-bexx | Blocked nozzles due to limescale or debris. | Clean nozzles using QuickClean. |
| Leakage at hose connection | Loose connection; damaged washer. | Ensure connection is tight. Replace rubber washer if damaged. |
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | 28379000 |
| Brand | Hansgrohe |
| Stil | Doċċa tal-Idejn |
| Forma | Round |
| Materjal | Stainless Steel |
| Tip Finish | Chrome |
| Kulur | Fidda |
| Tip ta' Installazzjoni | Wall Mount (for holder, hand shower connects to hose) |
| Numru ta' Ġettijiet | 3 (Normal, Massage, Turbo) |
| Dijametru | 85 mm |
| Dimensjonijiet (L x W x H) | 23 x 8.5 x 5 ċm |
| Piż | 0.21 kg |
| Max Rata tal-Fluss | 17 L/min (at 3 bars) |
| Pressjoni Max | 6 bars |
| Karatteristiċi Speċjali | EcoSmart (water saving), QuickClean (anti-limescale) |
| Komponenti Inklużi | 1 Marin Multi Hand Shower |
8. Informazzjoni dwar Garanzija
This Hansgrohe Marin Multi 3-Jet Hand Shower comes with a Garanzija ta' 5 snin mill-manifatturDin il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu u servizz normali. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
Image 8.1: The 5-year guarantee emblem, signifying product quality and reliability.
9. Appoġġ għall-Klijent
For further assistance, technical support, or warranty inquiries, please contact Hansgrohe customer service. Refer to the official Hansgrohe websit għal dettalji ta' kuntatt speċifiċi għar-reġjun tiegħek.
You can visit the official Hansgrohe websit għal aktar informazzjoni: www.hansgrohe.com
