Hansgrohe Monsoon Eco Hand Shower 28351000 Instruction Manual

1. Prodott Aktarview

The Hansgrohe Monsoon Eco Hand Shower 28351000 is designed to provide an efficient and comfortable showering experience. This hand shower features multiple spray modes, water-saving technology, and an easy-clean system for limescale removal.

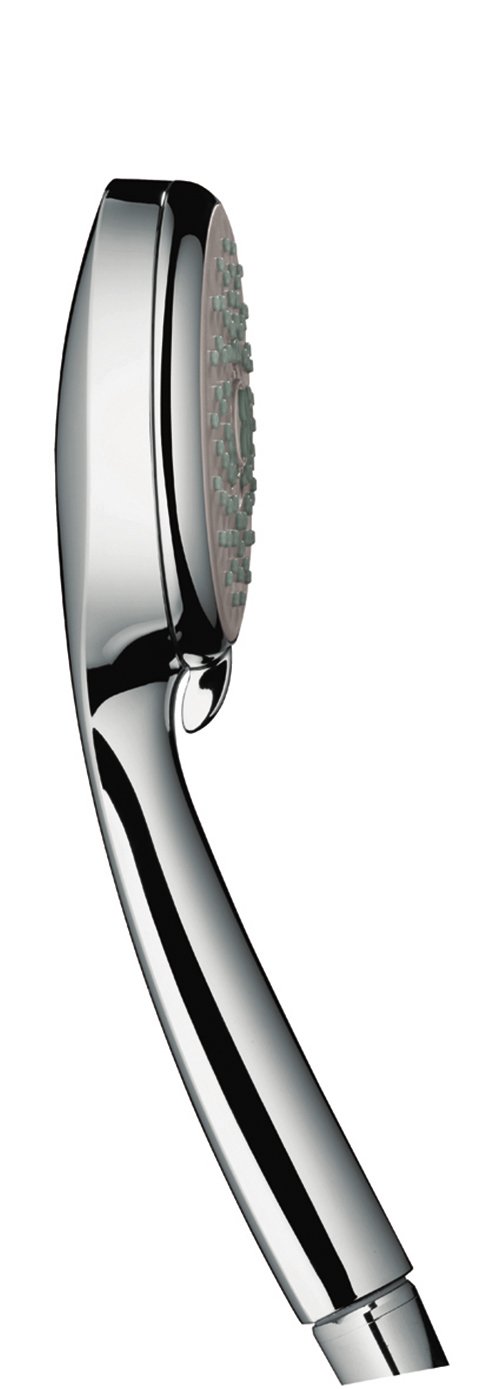

Image 1.1: The Hansgrohe Monsoon Eco Hand Shower, model 28351000, in chrome finish.

Karatteristiċi ewlenin:

• 3 Spray Modes: Offers Normal, Turbo, and Massage spray patterns for varied showering preferences.
• EcoSmart Function: Reduces water consumption by up to 50% for responsible resource use.
• Teknoloġija tal-AirPower: Enriches the water jet with air, creating a voluminous and softer spray.
• QuickClean System: Silicone nozzles allow for easy removal of limescale deposits by simply wiping them.
• Large Spray Face: A 100 mm diameter spray face ensures homogeneous water distribution.

2. Setup u Installazzjoni

This section provides general guidelines for installing your Hansgrohe Monsoon Eco Hand Shower. For detailed plumbing instructions, consult a qualified professional.

Passi ta' Installazzjoni:

1. Preparazzjoni: Kun żgur li l-provvista tal-ilma tkun mitfija qabel tibda l-installazzjoni.
2. Konnessjoni: The hand shower features a standard G 1/2 connection. Screw the hand shower onto your existing shower hose. Ensure the rubber washer is correctly seated to prevent leaks.
3. Issikkar: Hand-tighten the connection. If necessary, use a wrench, but avoid over-tightening to prevent damage.
4. Test: Ixgħel il-provvista tal-ilma u iċċekkja għal xi tnixxijiet.

Image 2.1: Technical drawing showing the dimensions of the hand shower, including the G 1/2 connection and 100 mm spray face diameter.

The hand shower is designed for wall mounting with a compatible shower holder (not included).

3. Istruzzjonijiet Operattivi

The Hansgrohe Monsoon Eco Hand Shower offers three distinct spray modes for a personalized showering experience.

Nibdlu l-Modi ta' Spray:

To switch between the Normal, Turbo, and Massage spray modes, rotate the spray face of the hand shower. Each rotation will cycle through the available modes.

Immaġni 3.1: Mill-qrib view of the hand shower's spray face, illustrating the mechanism for changing spray modes.

EcoSmart Function:

The EcoSmart technology is integrated into the hand shower to automatically limit water flow, reducing water and energy consumption without compromising comfort. This function operates continuously during use.

Teknoloġija tal-AirPower:

AirPower technology mixes air with water, creating lighter and softer water droplets. This results in a more voluminous and pleasant spray. This feature is also integrated and operates automatically.

4. Manutenzjoni

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hansgrohe Monsoon Eco Hand Shower.

QuickClean System:

The hand shower is equipped with QuickClean silicone nozzles. To remove limescale deposits, simply rub your finger across the flexible silicone nozzles on the spray face. This should be done regularly, especially in areas with hard water.

Image 4.1: Detail of the hand shower's silicone nozzles, part of the QuickClean system for easy limescale removal.

Tindif Ġenerali:

• Uża biss drappijiet rotob u aġenti tat-tindif ħfief iddisinjati speċifikament għall-attrezzaturi tal-kamra tal-banju.
• Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the chrome finish and silicone nozzles.
• Rinse the hand shower thoroughly with clean water after cleaning to remove any cleaning agent residue.

5 Issolvi l-problemi

If you encounter issues with your hand shower, refer to the following common troubleshooting tips:

Pressjoni Baxxa tal-Ilma:

• Check for Limescale: Use the QuickClean function to remove any limescale buildup from the nozzles.
• Spezzjona l-Pajp: Ensure the shower hose is not kinked or blocked.
• Provvista tal-Ilma: Verify that the main water supply valve is fully open.

Konnessjonijiet li Jnixxu:

• Check Washers: Ensure all rubber washers are correctly seated and not damaged at the connection points.
• Issikka l-Konnessjonijiet: Gently tighten the connections. Do not over-tighten.

Difficulty Changing Spray Modes:

• Limescale Buildup: Limescale can hinder the rotation mechanism. Clean the spray face thoroughly using the QuickClean method.

If problems persist after attempting these solutions, contact Hansgrohe customer support.

6. Speċifikazzjonijiet

7. Informazzjoni dwar Garanzija

The Hansgrohe Monsoon Eco Hand Shower 28351000 comes with a Garanzija ta' 5 snin mill-manifatturDin il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu u servizz normali.

Image 7.1: Official 5-year guarantee badge from Hansgrohe.

Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Hansgrohe warranty documentation or contact customer support.

8. Appoġġ

For further assistance, technical support, or warranty claims, please contact Hansgrohe customer service. You can find contact information on the official Hansgrohe webis-sit jew permezz tal-bejjiegħ lokali tiegħek.

Uffiċjali ta' Hansgrohe Websit: www.hansgrohe.com
