1. Introduzzjoni
This manual provides essential information for the safe and effective installation, operation, and maintenance of the SIEMENS BQD120 Circuit Breaker. Please read this manual thoroughly before attempting any installation or operation. Keep this manual for future reference.
2. Informazzjoni dwar is-Sigurtà
TWISSIJA: Electrical shock hazard. Only qualified personnel should install, operate, or service this equipment. Failure to follow these instructions can result in serious injury or death.
- Always disconnect power at the main service panel before working on circuit breakers or electrical panels.
- Uża tagħmir protettiv personali (PPE) xieraq bħal ingwanti iżolati u nuċċalijiet tas-sigurtà.
- Kun żgur li l-konnessjonijiet tal-wajers kollha huma sikuri u jissodisfaw il-kodiċijiet elettriċi lokali.
- Do not use this circuit breaker if it appears damaged.
- Qatt ma taqbeż jew tamper mal-mekkaniżmi protettivi tas-circuit breaker.
3. Prodott Aktarview
The SIEMENS BQD120 is a 1-pole, 20 Amp, 277VAC circuit breaker designed for reliable overcurrent protection in electrical systems. It features a plug-in mount for easy installation into compatible load centers.

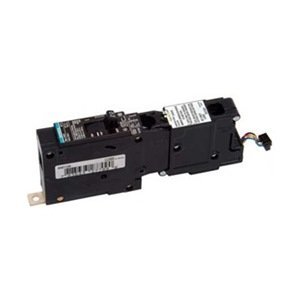

Stampa 1: Quddiem view of the SIEMENS BQD120 Circuit Breaker. This image shows the compact design of the 1-pole breaker, typically featuring a toggle switch for manual operation and a label indicating its amperage u voltage klassifikazzjonijiet.
Karatteristiċi ewlenin:
- Serje: BQD
- Max. AIR Rating: 14 kA
- AC Voltage Rating: 277VAC
- Klassifikazzjoni kurrenti: 20 Amps
- Numru ta' Poli: 1
- Tip ta 'Immuntar: Plug-In Mount
4. Konfigurazzjoni (Installazzjoni)
IMPORTANTI: Ensure all power to the electrical panel is OFF before proceeding with installation.
- Skonnettjar tal-Enerġija: Sib il-pannell tas-servizz prinċipali u itfi s-circuit breaker prinċipali biex tneħħi l-enerġija kompletament mill-pannell. Ivverifika b'voltmetrutagtester elettroniku li m'hemm l-ebda enerġija preżenti.
- Aċċess għall-Panel: Carefully remove the cover of the electrical panel to expose the bus bar and wiring area.
- Pożizzjonament tal-Breaker: Identify an available slot on the panel's bus bar. The BQD120 is a plug-in type breaker.
- Installazzjoni: Position the circuit breaker so its clip engages with the bus bar. Apply firm, even pressure until the breaker is securely seated and clicks into place.
- Wiring: Connect the circuit wire (hot wire) to the terminal screw on the circuit breaker. Ensure the wire is stripped to the correct length and the screw is tightened to the manufacturer's specified torque.
- Qoxra tal-Panew: Replace the electrical panel cover, ensuring all wires are clear and the cover is properly secured.
- Restawr tal-Enerġija: Turn the main circuit breaker back on.
5. Joperaw
The SIEMENS BQD120 Circuit Breaker operates as an automatic protective device for electrical circuits.
- Tixgħel: Push the breaker handle firmly to the 'ON' position.
- Itfi: Push the breaker handle firmly to the 'OFF' position to manually de-energize the circuit.
- Kundizzjoni tal-Vjaġġ: If an overcurrent or short circuit occurs, the breaker will automatically 'trip' to the center position (or sometimes fully 'OFF' depending on the design). This indicates a fault in the circuit.
- Ir-Resetjar ta' Breaker li Qabbad: To reset a tripped breaker, first push the handle completely to the 'OFF' position, then firmly push it to the 'ON' position. If the breaker immediately trips again, there is still a fault in the circuit that needs to be addressed.
6. Manutenzjoni
The SIEMENS BQD120 Circuit Breaker requires minimal maintenance. Regular inspection is recommended.
- Spezzjoni Viżwali: Spezzjona s-circuit breaker perjodikament għal kwalunkwe sinjal ta' ħsara fiżika, tibdil fil-kulur, jew konnessjonijiet laxki.
- Tindif: Ensure the area around the circuit breaker is free from dust and debris. Use a dry, non-conductive cloth for cleaning. Never use liquids or sprays directly on the breaker or inside the electrical panel.
- Kontroll Professjonali: It is advisable to have a qualified electrician inspect your electrical panel and circuit breakers periodically, especially if you experience frequent tripping or other electrical issues.
7 Issolvi l-problemi
If you encounter issues with your SIEMENS BQD120 Circuit Breaker, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Breaker jivvjaġġa spiss | Overloaded circuit, short circuit, ground fault, faulty appliance. | Unplug appliances from the circuit. If it still trips, inspect wiring for damage. If problem persists, consult a qualified electrician. |
| Il-brejker ma jerġax jiġi rrisettjat | Ħsara persistenti fiċ-ċirkwit, ħsara fil-circuit breaker intern. | Ensure the handle is pushed fully to 'OFF' before attempting to reset to 'ON'. If it still won't reset, disconnect all loads and try again. If it fails, the breaker may be faulty and require replacement by a qualified electrician. |
| No power to circuit, breaker is ON | Loose connection, wiring fault, main breaker tripped, faulty breaker. | Check main breaker. Inspect connections at the breaker and outlets (with power off). If all appears correct, the breaker may be faulty. Consult a qualified electrician. |
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | SIEMENS |
| Mudell | BQD120 |
| Klassifikazzjoni kurrenti | 20 Amps |
| Voltage | 277 Volts AC |
| Numru ta 'Pollakki | 1 |
| Tip ta 'Circuit Breaker | Standard |
| Tip ta 'Immuntar | Plug-In Mount |
| Max. AIR Rating | 14 kA |
| Piż tal-oġġett | 7 Liri |
9. Garanzija u Appoġġ
Warranty information for the SIEMENS BQD120 Circuit Breaker is typically provided with the product packaging or can be found on the official SIEMENS website. For technical support, service, or warranty claims, please contact SIEMENS customer service directly or visit their official support portal.
SIEMENS Official Websit: www.siemens.com
