Rocktile Pro LB104-N LowBone Electric Bass Guitar Instruction Manual

1. Introduzzjoni

This manual provides essential information for the proper setup, operation, and maintenance of your Rocktile Pro LB104-N LowBone Electric Bass Guitar. Please read this manual thoroughly before using your instrument to ensure optimal performance and longevity.

Figura 1.1: Quddiem view of the Rocktile Pro LB104-N LowBone Electric Bass Guitar. This image displays the full body, neck, headstock, pickups, and control knobs.

2. Setup

2.1 Spakkjar u Spezzjoni

Carefully remove the bass guitar from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Retain all packaging materials for future transport or if the instrument needs to be returned.

2.2 Konnessjoni ma' Ampaktar ħaj

1. Tiżgura tiegħek ampIl-lifer jintefa u l-volum tiegħu jkun issettjat għall-minimu.
2. Connect one end of a standard 6.35 mm (1/4 inch) instrument cable to the output jack located on the side of your bass guitar.
3. Connect the other end of the cable to the input jack of your bass ampaktar ħaj.
4. Ixgħel tiegħek amplifier u żid il-volum gradwalment sal-livell mixtieq.

Figura 2.1: Detail of the control knobs and the 6.35 mm output jack on the Rocktile Pro LB104-N bass guitar.

2.3 L-Irfinar tal-Istrument

Before playing, ensure your bass guitar is properly tuned. Standard bass tuning is E-A-D-G (from thickest to thinnest string). Use an electronic tuner for accuracy.

• Attach a clip-on tuner to the headstock or connect an inline tuner between the bass and ampaktar ħaj.
• Pluck each string individually and adjust the corresponding tuning machine head until the tuner indicates the correct pitch.

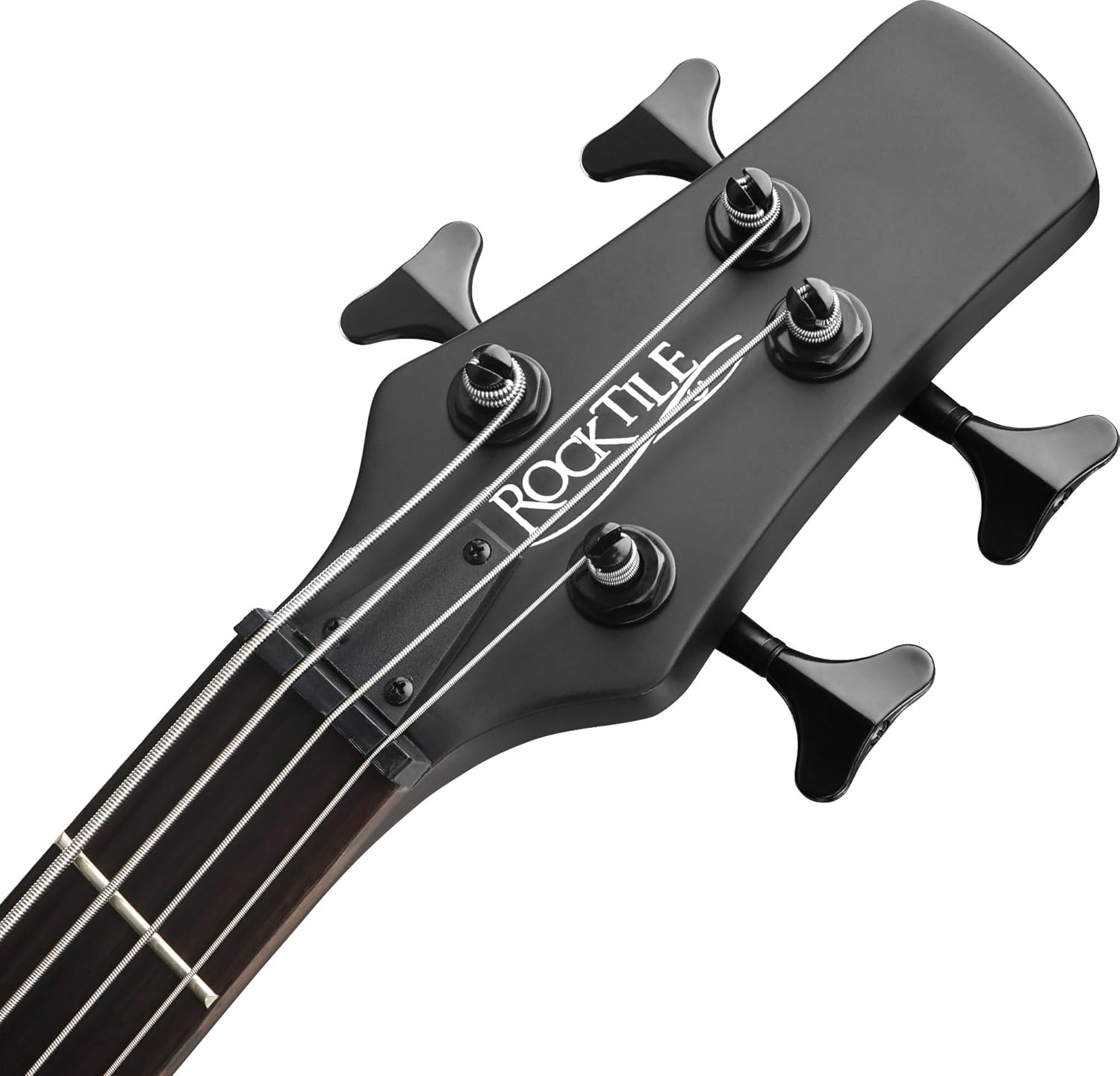

Figura 2.2: The headstock of the Rocktile Pro LB104-N bass guitar, showing the tuning machines for each string.

3. Operating the Bass Guitar

3.1 Kontrolli Fuqview

The Rocktile Pro LB104-N features two Humbucker pickups and four control knobs for shaping your sound.

• Volume Knobs (2): Each pickup has an independent volume control. Adjust these to blend the output of the neck and bridge pickups.
• Tone Knobs (2): Each pickup also has an independent tone control. These knobs allow you to adjust the treble frequencies, from bright (fully clockwise) to mellow (fully counter-clockwise).

Figura 3.1: The four control knobs on the Rocktile Pro LB104-N bass guitar, used for volume and tone adjustments.

3.2 Pickup Configuration

The bass is equipped with two Humbucker pickups. The neck pickup generally produces a warmer, rounder tone, while the bridge pickup offers a brighter, more articulate sound. Experiment with the individual volume and tone controls to find your preferred sound.

Figura 3.2: The two Humbucker pickups and the fixed bridge system on the Rocktile Pro LB104-N bass guitar.

4. Manutenzjoni

4.1 Tindif

• After each use, wipe down the strings, fretboard, and body with a clean, soft, dry cloth to remove sweat and dirt.
• For the body, a slightly damp cloth can be used, followed by a dry one. Avoid harsh chemicals or abrasive cleaners.
• Periodically clean the fretboard with a specialized fretboard cleaner and conditioner to prevent drying and cracking.

4.2 Sostituzzjoni tal-Korda

Strings should be replaced regularly to maintain optimal tone and playability.

1. Ibdel korda waħda kull darba biex iżżomm it-tensjoni tal-għonq.
2. Loosen the old string, cut it, and remove it from the bridge and tuning machine.
3. Insert the new string through the bridge and wind it onto the tuning machine post, ensuring a few wraps around the post.
4. Tune the new string to the correct pitch.

4.3 Ħażna

Store your bass guitar in a stable environment, away from extreme temperature changes or humidity fluctuations, which can damage the wood. A gig bag or hard case is recommended for protection.

5 Issolvi l-problemi

6. Speċifikazzjonijiet

7. Garanzija u Appoġġ

Għal informazzjoni dwar il-garanzija u appoġġ għall-klijenti, jekk jogħġbok irreferi għad-dokumentazzjoni pprovduta fil-ħin tax-xiri jew ikkuntattja lill-bejjiegħ tiegħek. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.

For technical assistance or service, please contact Rocktile customer service or an authorized service center.
