1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your Oregon 50-657 Carburetor. This carburetor is designed as a high-quality aftermarket replacement for Briggs & Stratton engine models 498170 and 497586. Please read this manual thoroughly before attempting any installation or maintenance to ensure proper function and safety.
2. Informazzjoni dwar is-Sigurtà
TWISSIJA: Always disconnect the spark plug wire before performing any service or maintenance on the engine to prevent accidental starting. Fuel is highly flammable; work in a well-ventilated area away from open flames or sparks. Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the engine is cool before handling any components.
- Uża biss l-għodda korretta għax-xogħol.
- Żomm it-tfal u l-annimali domestiċi 'l bogħod miż-żona tax-xogħol.
- Dispose of old fuel and parts responsibly.
3. Installazzjoni
This section outlines the steps for replacing your existing carburetor with the Oregon 50-657. Refer to your engine's specific service manual for detailed diagrams and torque specifications.
3.1 Passi ta' Qabel l-Installazzjoni
- Skonnettja l-wajer tal-ispark plug.
- Turn off the fuel supply valve, if equipped.
- Drain the fuel tank or clamp il-linja tal-fjuwil biex tevita t-tnixxija tal-fjuwil.
- Remove the air filter assembly and any shrouds obstructing access to the carburetor.
3.2 Removing the Old Carburetor
- Carefully disconnect the fuel line from the carburetor.
- Note the routing and connection points of all linkages and springs (throttle, choke). Take photos if necessary for reassembly.
- Remove the mounting nuts or bolts that secure the carburetor to the engine intake manifold.
- Iġbed bil-mod il-karburatur il-qadim 'il bogħod mill-magna, waqt li tiżgura li l-gaskits kollha jitneħħew.
3.3 Installing the New Oregon 50-657 Carburetor

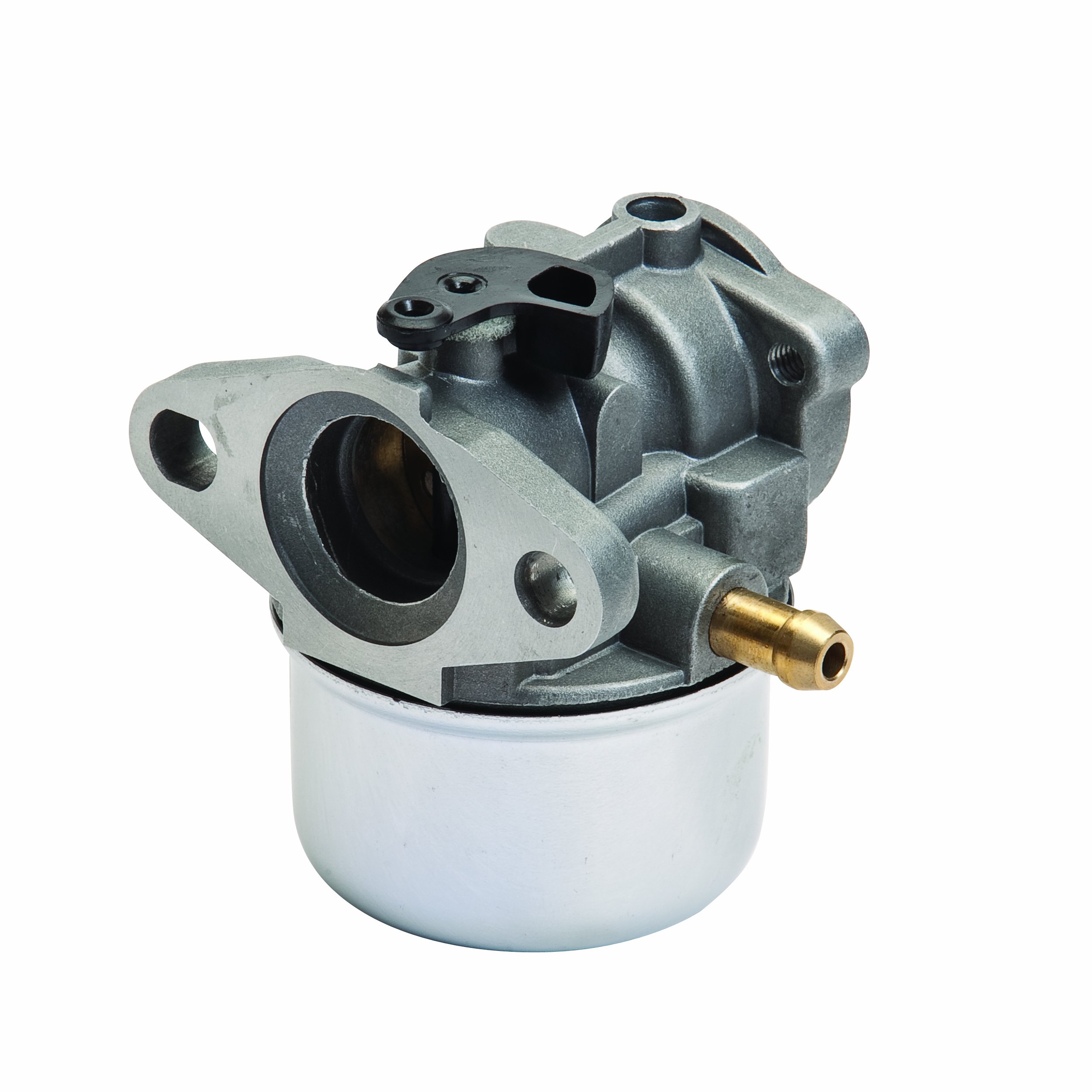

Image: The Oregon 50-657 Carburetor, showing its main body and connection points. This image illustrates the general appearance of the replacement part.
- Ensure all mating surfaces are clean and free of old gasket material.
- Place new gaskets in their correct positions between the engine, carburetor, and air filter base.
- Carefully position the new Oregon 50-657 carburetor onto the mounting studs.
- Reconnect all linkages and springs to their original positions. Refer to your photos if needed.
- Attach the fuel line securely to the carburetor.
- Install the mounting nuts or bolts and tighten them evenly to the manufacturer's specified torque. Do not overtighten.
- Reinstall the air filter assembly and any removed shrouds.
- Erġa 'qabbad il-wajer ta' l-ispark.
4. Istruzzjonijiet Operattivi
After installation, perform the following steps to ensure proper engine operation.
- Iftaħ il-valv tal-provvista tal-fjuwil.
- Prime the carburetor if your engine has a primer bulb, following the engine manufacturer's instructions.
- Set the choke and throttle controls according to your engine's starting procedure.
- Start the engine. Allow it to warm up for a few minutes.
- Check for any fuel leaks around the carburetor and fuel lines. Address any leaks immediately.
- Adjust the idle speed if necessary, referring to your engine's service manual.
5. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-karburatur tiegħek.
- Kwalità tal-Fjuwil: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer.
- Filtru tal-Fjuwil: Inspect and replace the fuel filter regularly as per your engine manufacturer's recommendations.
- Filtru tal-Arja: A clean air filter is crucial for proper air-fuel mixture. Clean or replace the air filter as needed.
- Tindif tal-Karburatur: If performance issues arise, the carburetor may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with mechanical experience.
6 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna mhux se tibda | Ebda fjuwil, filtru tal-fjuwil imblukkat, issettjar ħażin taċ-choke, problema bil-spark plug. | Check fuel level, replace fuel filter, adjust choke, check spark plug. |
| Il-magna taħdem ħażin jew tieqaf | Dirty carburetor jets, old fuel, air filter clogged, incorrect idle adjustment. | Clean carburetor, use fresh fuel, clean/replace air filter, adjust idle. |
| Tnixxija tal-fjuwil mill-karburatur | Loose fuel line, damaged gasket, float needle issue. | Tighten fuel line, replace gaskets, inspect float and needle. |
If these steps do not resolve the issue, it is recommended to consult a qualified service technician.
7. Speċifikazzjonijiet
- Numru tal-Mudell: 50-657
- Sostituzzjoni Għal: Briggs & Stratton 498170, 497586
- Ditta: Oregon
- Piż tal-oġġett: Madwar 8.48 uqija
- Dimensjonijiet tal-pakkett: 4.25" (Tul) x 3.5" (Wisa') x 3.0" (Għoli)
- GTIN/UPC: 032488506576
- Manifattur: Oregon
8. Garanzija u Appoġġ
For specific warranty information regarding your Oregon 50-657 Carburetor, please refer to the documentation included with your purchase or visit the official Oregon website. For technical support or assistance, please contact Oregon customer service directly.
Note: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 Warning).
