ProForm 67185 HEI Distributor Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your ProForm 67185 Vacuum Advance HEI Distributor. This high-energy ignition (HEI) system is designed for AMC 290-401 cubic inch V8 engines, offering improved ignition performance and durability.

The ProForm 67185 distributor features a high-power coil, a hi-dielectric red cap with brass terminals, and a low saturation ignition module, all assembled from precision-made parts to ensure reliable operation and a higher voltage spark.

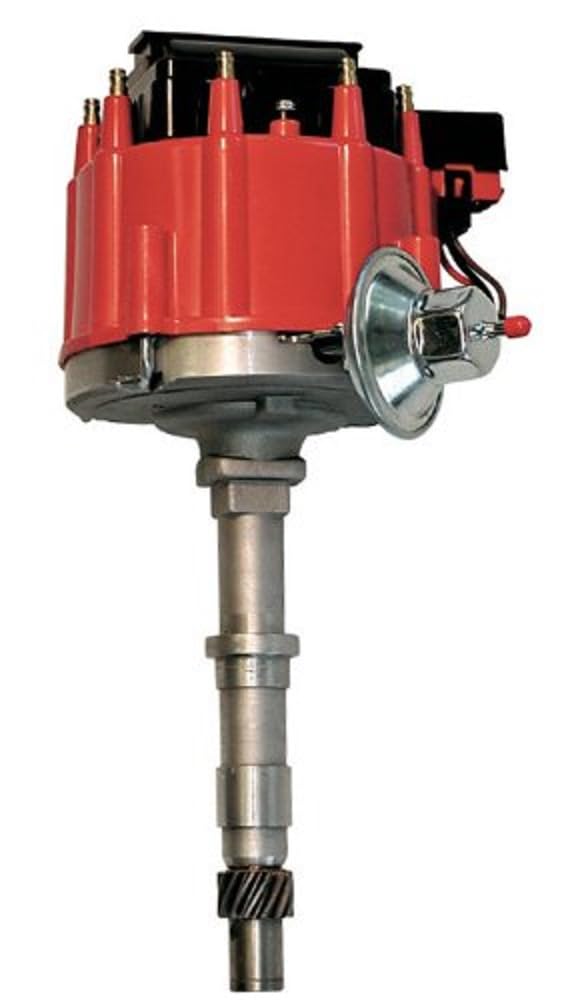

Image 1.1: The ProForm 67185 Vacuum Advance HEI Distributor, featuring a red cap and steel gear. This image displays the complete assembly of the distributor, including the housing, vacuum advance unit, and ignition coil integrated into the cap.

2. Informazzjoni dwar is-Sigurtà

Always observe the following safety precautions when working on your vehicle's ignition system:

• Disconnect the vehicle's battery before beginning any installation or maintenance to prevent electrical shock or damage to components.
• Ilbes tagħmir protettiv personali xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà.
• Ensure the engine is cool before working on ignition components to avoid burns.
• Keep a fire extinguisher nearby when working with fuel or electrical systems.
• Ikkonsulta mekkanik kwalifikat jekk m'intix ċert dwar xi passi tal-installazzjoni.

Emissions Note: This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing. Verify local regulations before installation.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel ma tipproċedi bl-installazzjoni:

• ProForm 67185 HEI Distributor Assembly (with steel gear)
• Hi-Dielectric Red Distributor Cap (with brass terminals)
• Integrated High-Power Ignition Coil
• Low Saturation Ignition Module
• Vacuum Advance Unit

4. Setup u Installazzjoni

This section outlines the general procedure for installing the ProForm 67185 HEI Distributor. Specific steps may vary depending on your vehicle's configuration. Professional installation is recommended.

4.1. Passi ta 'qabel l-installazzjoni

1. Skonnettja l-batterija: Skonnettja t-terminal negattiv tal-batterija tal-vettura.
2. Pożizzjoni tar-Rotor tal-Immarkar: Before removing the old distributor, rotate the engine until the rotor points to the #1 cylinder's spark plug wire terminal on the distributor cap. Mark the position of the rotor and the distributor housing relative to the engine block. This is crucial for initial timing.
3. Mark Vacuum Line: If applicable, mark the vacuum line connection to the old distributor.
4. Neħħi d-Distributur il-Qadim: Disconnect all wires and vacuum lines from the old distributor. Remove the distributor hold-down clamp and carefully lift the old distributor out of the engine block. Note the orientation of the oil pump drive shaft.

4.2. Installing the New Distributor

1. Ipprepara Distributur Ġdid: Ensure the new ProForm 67185 distributor's rotor is pointing to the same position as marked in step 4.1.2.
2. Insert Distributor: Carefully lower the new distributor into the engine block, aligning the oil pump drive shaft. The distributor should seat fully. If it does not, slightly rotate the engine crankshaft by hand until the distributor gear meshes with the camshaft gear and the distributor drops into place. The rotor should still be pointing near the #1 cylinder position.
3. Install Hold-Down Clamp: Install the distributor hold-down clamp, but do not fully tighten it yet. This allows for timing adjustments.
4. Konnessjonijiet tal-Wiring: Connect the main power wire to the "BAT" terminal on the HEI cap (typically a 12V switched ignition source). Connect the tachometer wire (if applicable) to the "TACH" terminal. Ensure all connections are secure.
5. Vacuum Advance: Connect the vacuum advance line to the appropriate vacuum port on the carburetor or intake manifold.
6. Wajers tal-Plagg tal-Ispark: Install new or existing spark plug wires, ensuring they are routed correctly and securely connected to the cap terminals in the correct firing order for your AMC 290-401 engine. The #1 cylinder wire should align with the rotor position when the engine is at Top Dead Center (TDC) on the compression stroke.

4.3. Initial Timing

1. Erġa' qabbad il-batterija: Erġa' qabbad it-terminal negattiv tal-batterija.
2. Ibda l-Magna: Start the engine. It may run rough initially.
3. Set Timing: Using a timing light, adjust the distributor by rotating it slightly until the desired initial timing is achieved (refer to your vehicle's service manual for specific timing specifications).
4. Issikka Clamp: Once the timing is set, tighten the distributor hold-down clamp sikur.
5. Iċċekkja l-Prestazzjoni: Test drive the vehicle to ensure proper operation and performance.

5. Operazzjoni

The ProForm 67185 HEI Distributor is a self-contained ignition system that provides a high-energy spark to the spark plugs, ensuring efficient combustion. The vacuum advance mechanism adjusts ignition timing based on engine vacuum, optimizing performance and fuel economy under varying load conditions. Once properly installed and timed, the distributor operates automatically as part of your engine's ignition system.

6. Manutenzjoni

Regular maintenance helps ensure the longevity and optimal performance of your HEI distributor:

• Inspect Cap and Rotor: Periodically inspect the distributor cap and rotor for cracks, carbon tracking, or excessive wear. Replace if necessary.
• Check Spark Plug Wires: Ensure spark plug wires are in good condition, free from cracks or damage, and securely connected.
• Ivverifika l-Ħin: Occasionally check the engine timing with a timing light to ensure it remains within specifications.
• Konnessjonijiet Nadif: Keep electrical connections clean and free of corrosion.

7 Issolvi l-problemi

If you experience issues after installing your ProForm 67185 HEI Distributor, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, consult a professional automotive technician.

8. Speċifikazzjonijiet

• Mudell: ProForm 67185
• Applikazzjoni: AMC 290-401ci V8 Engines
• Tip ta' tqabbid: High Energy Ignition (HEI) with Vacuum Advance
• Tip ta 'Kap Hi-Dielectric Red Cap with Brass Terminals
• Tip ta' Gear: Irkaptu tal-Azzar
• Komponenti Integrati: High-Power Coil, Low Saturation Ignition Module
• Piż tal-oġġett: 6.5 liri (madwar 2.95 kg)
• Dimensjonijiet tal-Prodott: 11 x 17.2 x 7.8 pulzieri (madwar 27.9 x 43.7 x 19.8 ċm)
• Pajjiż ta' Oriġini: Istati Uniti
• Numru tal-Parti tal-Manifattur: 67185
• Numru tal-Parti OEM: 67185

9. Garanzija u Appoġġ

For warranty information and technical support regarding your ProForm 67185 HEI Distributor, please refer to the manufacturer's official website or contact the retailer from whom the product was purchased. Keep your proof of purchase for warranty claims.
